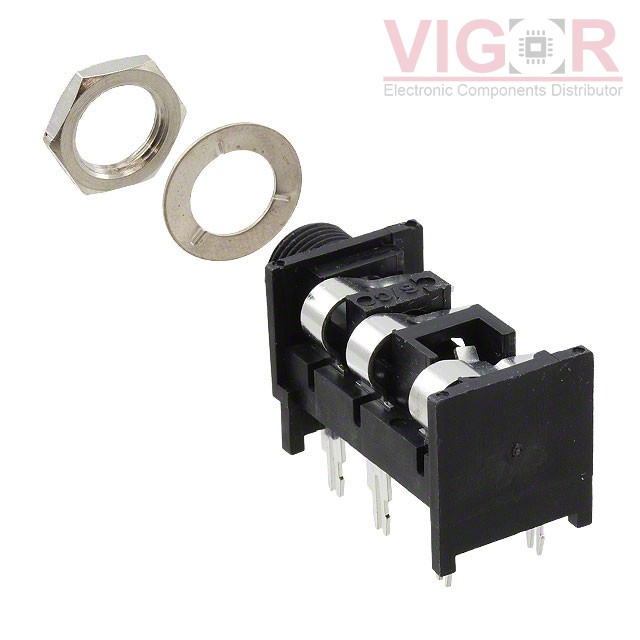

RA49B14B

Part No :: RA49B14B

Manufacturer: Switchcraft / Conxall

Description: CONN JACK STEREO 6.35MM R/A

Catalog: Barrel - Audio Connectors

DataSheet: RA49B14B PDF

Availability: 213 pieces

Unit Price: ~~$3.82000~~

Current price of RA49B14B is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

RA49B14B Specifications

Type	Description
Series:	RA Jax®
Package:	Bulk
Part Status:	Active
Connector Type:	Phone Jack
Gender:	Female
Signal Lines:	Stereo (3 Conductor, TRS)
Industry Recognized Mating Diameter:	6.35mm (0.250", 1/4") - Headphone
Actual Diameter:	0.253" (6.43mm)
Number of Positions/Contacts:	3 Conductors, 5 Contacts
Internal Switch(s):	Two Switches
Mounting Type:	Through Hole, Right Angle
Termination:	Solder
Shielding:	Unshielded
Features:	Board Guide
Insulation Color:	-
Operating Temperature:	-

Please confirm the specifications of the products when ordering.
