SJ-43516-SMT-TR

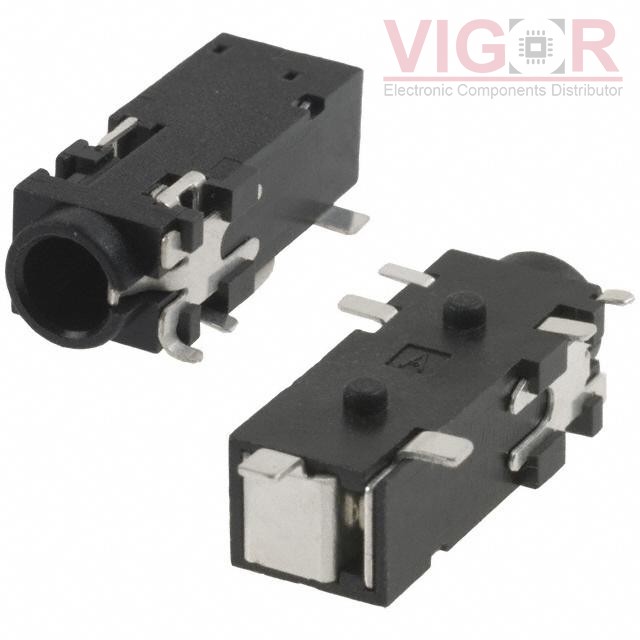

Image is for reference,
please contact us to get the real picture

Part No :: SJ-43516-SMT-TR

Manufacturer: CUI Devices

Description: CONN JACK 4COND 3.5MM SMD R/A

Catalog: Barrel - Audio Connectors

DataSheet: SJ-43516-SMT-TR PDF

Availability: 12268 pieces

Unit Price: ~~$1.08000~~

Current price of SJ-43516-SMT-TR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SJ-43516-SMT-TR Specifications

Type	Description
Series:	SJ
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Connector Type:	Phone Jack
Gender:	Female
Signal Lines:	Stereo (4 Conductor, TRRS)
Industry Recognized Mating Diameter:	3.50mm (0.141", 1/8", Mini Plug) - Headphone
Actual Diameter:	0.142" (3.60mm)
Number of Positions/Contacts:	4 Conductors, 6 Contacts
Internal Switch(s):	Two Switches
Mounting Type:	Surface Mount, Right Angle
Termination:	Solder
Shielding:	Unshielded
Features:	Board Guide
Insulation Color:	-
Operating Temperature:	-20°C ~ 85°C
