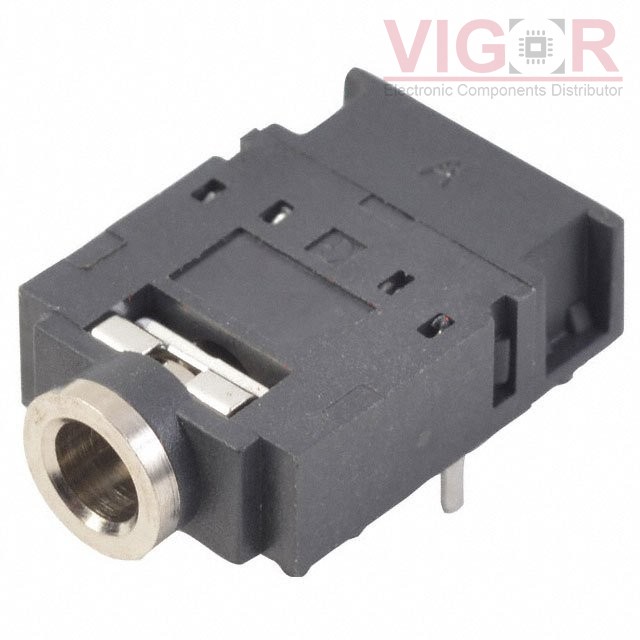

SJ-3566BN

Image is for reference,
please contact us to get the real picture

Part No :: SJ-3566BN

Manufacturer: CUI Devices

Description: CONN JACK MONO R/A 3.5MM PCB

Catalog: Barrel - Audio Connectors

DataSheet: SJ-3566BN PDF

Availability: 0 pieces

Unit Price: ~~$1.22149~~

Current price of SJ-3566BN is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SJ-3566BN Specifications

Type	Description
Series:	SJ
Package:	Tray
Part Status:	Active
Connector Type:	Phone Jack
Gender:	Female
Signal Lines:	Mono
Industry Recognized Mating Diameter:	3.50mm (0.141", 1/8", Mini Plug) - Headphone
Actual Diameter:	0.142" (3.60mm)
Number of Positions/Contacts:	2 Conductors, 6 Contacts
Internal Switch(s):	Single Switch, SPDT Switch
Mounting Type:	Through Hole, Right Angle
Termination:	Solder
Shielding:	Unshielded
Features:	Board Guide
Insulation Color:	-
Operating Temperature:	-25°C ~ 85°C
