4802.2320

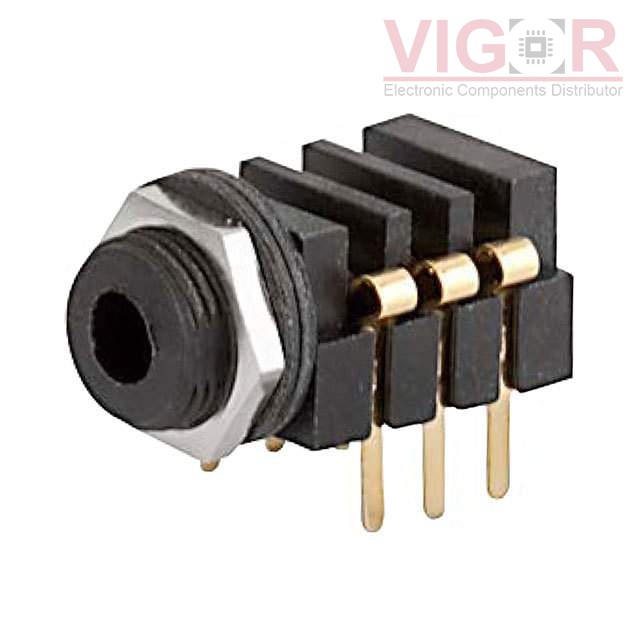

Image is for reference,
please contact us to get the real picture

Part No :: 4802.2320

Manufacturer: Schurter

Description: CONN JACK STEREO 3.5MM R/A

Catalog: Barrel - Audio Connectors

DataSheet: 4802.2320 PDF

Availability: 96 pieces

Unit Price: ~~$7.98000~~

Current price of 4802.2320 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

4802.2320 Specifications

Type	Description
Series:	4802
Package:	Bulk
Part Status:	Active
Connector Type:	Phone Jack
Gender:	Female
Signal Lines:	Stereo (3 Conductor, TRS)
Industry Recognized Mating Diameter:	3.50mm (0.141", 1/8", Mini Plug) - Headphone
Actual Diameter:	0.146" (3.70mm)
Number of Positions/Contacts:	3 Conductors, 6 Contacts
Internal Switch(s):	Three Switches
Mounting Type:	Panel Mount, Through Hole, Right Angle
Termination:	Solder
Shielding:	Unshielded
Features:	Mounting Hardware, Thread Lock
Insulation Color:	-
Operating Temperature:	-20°C ~ 70°C
