SJ-42514-SMT-1

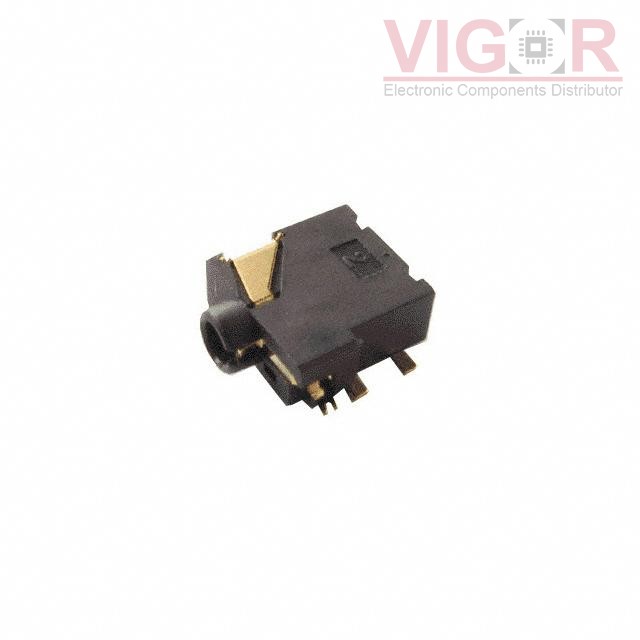

Image is for reference,
please contact us to get the real picture

Part No :: SJ-42514-SMT-1

Manufacturer: CUI Devices

Description: CONN JACK 4COND 2.5MM SMD R/A

Catalog: Barrel - Audio Connectors

DataSheet: SJ-42514-SMT-1 PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of SJ-42514-SMT-1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SJ-42514-SMT-1 Specifications

Type	Description
Series:	SJ
Package:	-
Part Status:	Obsolete
Connector Type:	Phone Jack
Gender:	Female
Signal Lines:	Stereo (4 Conductor, TRRS)
Industry Recognized Mating Diameter:	2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone
Actual Diameter:	0.102" (2.60mm)
Number of Positions/Contacts:	4 Conductors, 4 Contacts
Internal Switch(s):	Does Not Contain Switch
Mounting Type:	Surface Mount, Right Angle
Termination:	Solder
Shielding:	Unshielded
Features:	Board Guide
Insulation Color:	-
Operating Temperature:	-20°C ~ 85°C
