SN70C14B

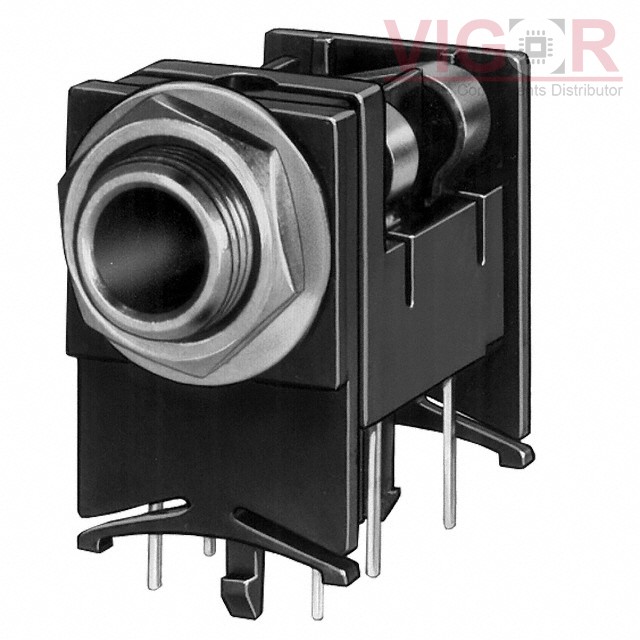

Image is for reference,
please contact us to get the real picture

Part No :: SN70C14B

Manufacturer: Switchcraft / Conxall

Description: CONN JACK STEREO 6.35MM R/A

Catalog: Barrel - Audio Connectors

DataSheet: SN70C14B PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of SN70C14B is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SN70C14B Specifications

Type	Description
Series:	SN70C
Package:	Bulk
Part Status:	Obsolete
Connector Type:	Phone Jack
Gender:	Female
Signal Lines:	Stereo (3 Conductor, TRS)
Industry Recognized Mating Diameter:	6.35mm (0.250", 1/4") - Headphone
Actual Diameter:	0.250" (6.35mm)
Number of Positions/Contacts:	3 Conductors, 5 Contacts
Internal Switch(s):	Two Switches
Mounting Type:	Through Hole, Right Angle
Termination:	Solder
Shielding:	Unshielded
Features:	Mounting Hardware, Thread Lock
Insulation Color:	-
Operating Temperature:	-
