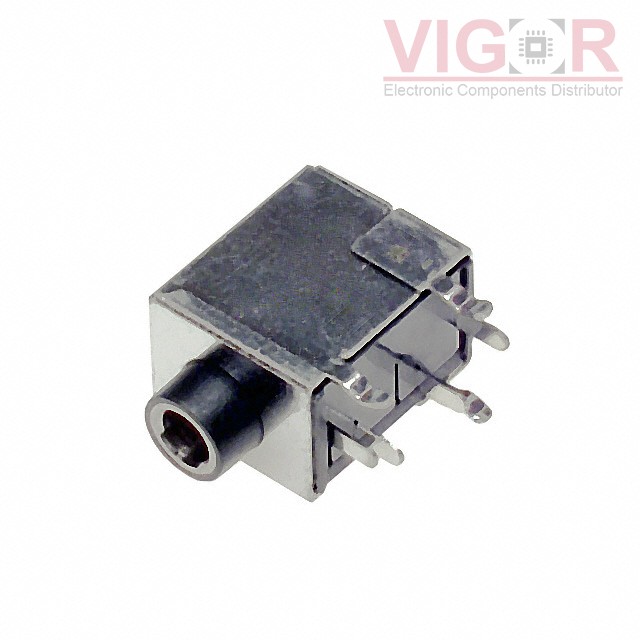

SJ-3534NGS

Image is for reference,
please contact us to get the real picture

Part No :

SJ-3534NGS

Manufacturer
CUI Devices
Description
CONN JACK STEREO 3.5MM R/A
Catalog
Barrel - Audio Connectors
Shipped from
HK warehouse
Expected Shipping Date
Oct 03 - Oct 07 2025
DataSheet
SJ-3534NGS PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of SJ-3534NGS is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:SJ
Package:-
Part Status:Obsolete
Connector Type:Phone Jack
Gender:Female
Signal Lines:Stereo (3 Conductor, TRS)
Industry Recognized Mating Diameter:3.50mm (0.141", 1/8", Mini Plug) - Headphone
Actual Diameter:0.142" (3.60mm)
Number of Positions/Contacts:3 Conductors, 4 Contacts
Internal Switch(s):Single Switch
Mounting Type:Through Hole, Right Angle
Termination:Solder
Shielding:Shielded
Features:Board Lock
Insulation Color:-
Operating Temperature:-
