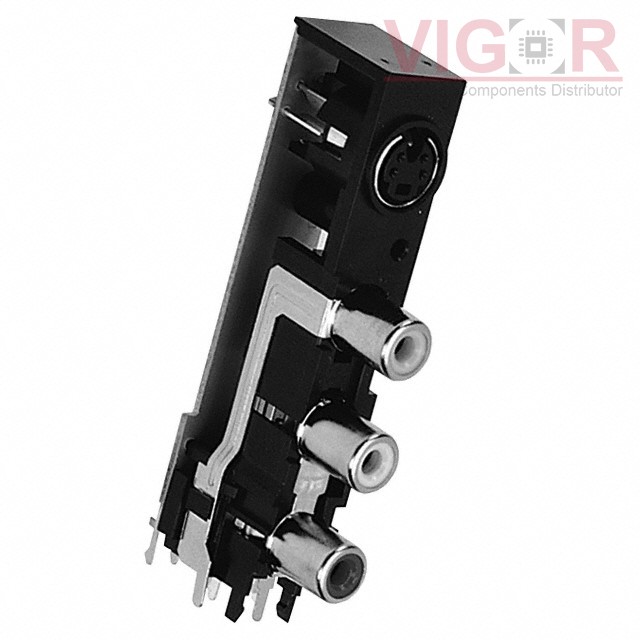

PJRAS1X3U01

Part No :: PJRAS1X3U01

Manufacturer: Switchcraft / Conxall

VIGOR # :: 4713614

Description: CONN RCA JACK MONO 3.2MM R/A

Catalog: Barrel - Audio Connectors

DataSheet: PJRAS1X3U01 PDF

Country of origin: -

Date code: -

PJRAS1X3U01 Specifications

Type	Description
Series:	PJR
Package:	-
Part Status:	Obsolete
Connector Type:	Phono (RCA) Jack
Gender:	Female
Signal Lines:	Mono
Industry Recognized Mating Diameter:	3.20mm ID, 9.00mm OD (RCA)
Actual Diameter:	-
Number of Positions/Contacts:	3 Sets of 2 Conductors, 5 Contacts
Internal Switch(s):	Does Not Contain Switch
Mounting Type:	Through Hole, Right Angle
Termination:	Solder
Shielding:	Shielded
Features:	Grounding Tab
Insulation Color:	Red, White, Yellow
Operating Temperature:	-25°C ~ 85°C

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Jan 16 - Jan 20 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price

Current price of PJRAS1X3U01 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
