PJ1-022-SMT-TR

Part No :: PJ1-022-SMT-TR

Manufacturer: CUI Devices

VIGOR # :: 3279833

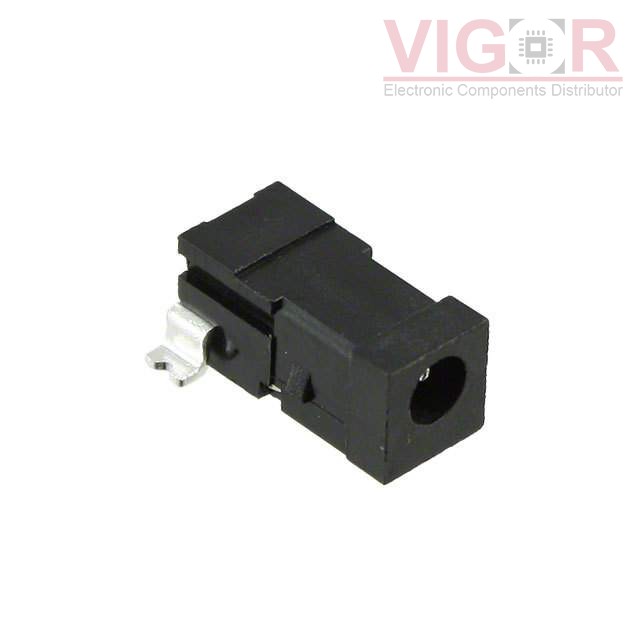

Description: CONN PWR JACK 0.7X2.35MM SOLDER

Catalog: Barrel - Power Connectors

DataSheet: PJ1-022-SMT-TR PDF

Country of origin: -

Date code: -

PJ1-022-SMT-TR Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Connector Type:	Jack
Gender:	Male
Industry Recognized Mating Diameter:	0.70mm ID (0.028"), 2.35mm OD (0.093") EIAJ-1
Actual Diameter:	0.026" (0.65mm ID), 0.110" (2.80mm OD)
Number of Positions/Contacts:	2 Conductors, 3 Contacts
Internal Switch(s):	Single Switch, Normally Closed
Mounting Type:	Surface Mount, Right Angle
Mounting Feature:	-
Termination:	Solder
Shielding:	Unshielded
Features:	Board Guide
Insulation Color:	-
Voltage - Rated:	24VDC
Current Rating (Amps):	2.5 A
Mating Length/Depth:	0.315" (8.00mm)
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
