PJ-086H

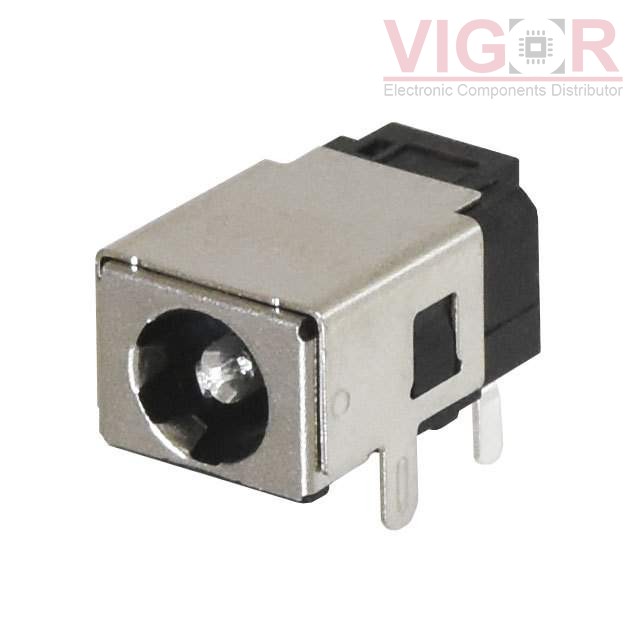

Product image
Product thumb
Part No :

PJ-086H

Manufacturer
CUI Devices
VIGOR # :

3280014

Description
PWR JACK 1.65X4.4MM RT THROUGH H
Catalog
Barrel - Power Connectors
DataSheet
PJ-086H PDF
Country of origin
-
Date code
-
ads
PJ-086H Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Connector Type:Jack
Gender:Male
Industry Recognized Mating Diameter:1.70mm ID (0.067"), 4.00mm OD (0.157")
Actual Diameter:0.065" (1.65mm ID), 0.173" (4.40mm OD)
Number of Positions/Contacts:3 Conductors, 4 Contacts
Internal Switch(s):Single Switch, Normally Closed
Mounting Type:Through Hole, Right Angle
Mounting Feature:-
Termination:Solder
Shielding:Shielded
Features:Board Guide
Insulation Color:-
Voltage - Rated:24VDC
Current Rating (Amps):5 A
Mating Length/Depth:0.323" (8.20mm)
Ingress Protection:-
Material Flammability Rating:UL94 V-0
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 780
Shipped from
HK warehouse
Expected Shipping Date
Nov 04 - Nov 08 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $1.6100 $1.61
700 $1.1305 $791.36
1400 $0.9818 $1 374.45
2100 $0.9520 $1 999.20
3500 $0.9222 $3 227.88
4900 $0.8806 $4 314.94

Current price of PJ-086H is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
