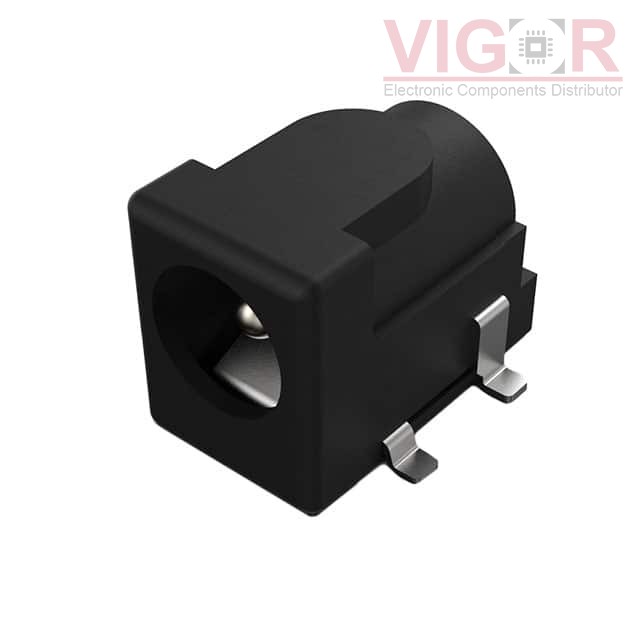

DCJ200-05-A-K1-A

Part No :: DCJ200-05-A-K1-A

Manufacturer: Global Connector Technology, Limited (GCT)

VIGOR # :: 3280129

Description: DC POWER JACK, SMT, HORIZONTAL,

Catalog: Barrel - Power Connectors

DataSheet: DCJ200-05-A-K1-A PDF

Country of origin: -

Date code: -

DCJ200-05-A-K1-A Specifications

Type	Description
Series:	DCJ200-05
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Connector Type:	Jack
Gender:	Male
Industry Recognized Mating Diameter:	2.05mm ID (0.081"), 5.50mm OD (0.217")
Actual Diameter:	0.079" (2.00mm ID), 0.252" (6.40mm OD)
Number of Positions/Contacts:	2 Conductors, 3 Contacts
Internal Switch(s):	Single Switch, Normally Closed
Mounting Type:	Surface Mount, Right Angle
Mounting Feature:	-
Termination:	Solder
Shielding:	Unshielded
Features:	Board Guide, Solder Retention
Insulation Color:	-
Voltage - Rated:	20VDC
Current Rating (Amps):	5 A
Mating Length/Depth:	-
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 909

Shipped from

HK warehouse

Expected Shipping Date

Nov 08 - Nov 12 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$0.9600~~	~~$0.96~~
250	~~$0.7425~~	~~$185.63~~
500	~~$0.6765~~	~~$338.25~~
750	~~$0.6600~~	~~$495.01~~
1250	~~$0.6105~~	~~$763.12~~
1750	~~$0.5775~~	~~$1 010.62~~
2500	~~$0.5610~~	~~$1 402.50~~
6250	~~$0.5445~~	~~$3 403.12~~
12500	~~$0.5115~~	~~$6 393.75~~

Current price of DCJ200-05-A-K1-A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

PP-2555TL-M

POWER PLUG, 2.5 X 5.5 MM, STRAIG

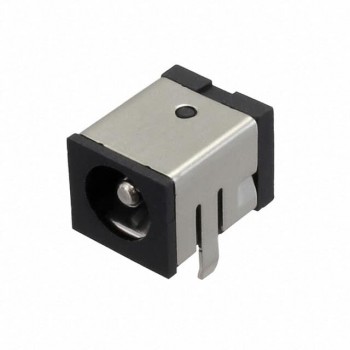

KLDHCX-8-0202-B

CONN PWR JACK 2.5X5.5MM SOLDER

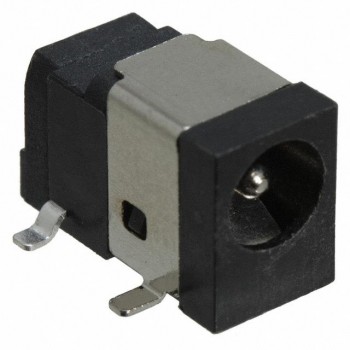

PJ-030DH-SMT-TR
