PJ-093H-SMT-TR

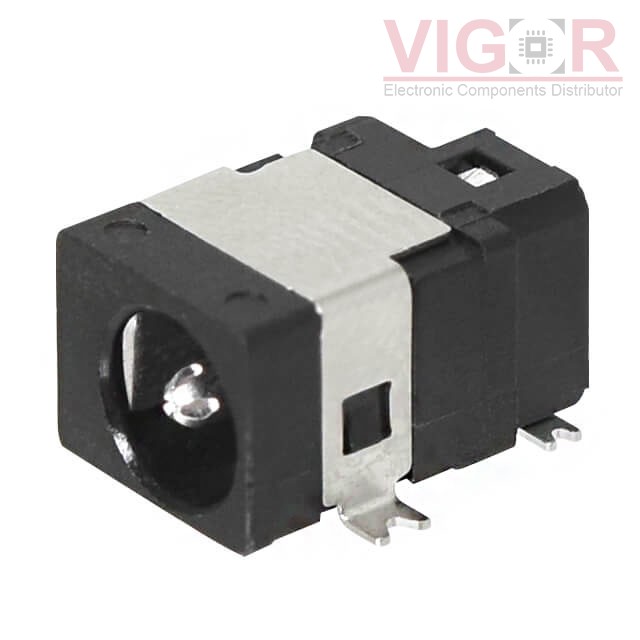

Image is for reference,
please contact us to get the real picture

Part No :: PJ-093H-SMT-TR

Manufacturer: CUI Devices

Description: PWR JACK 1.65X5.15MM HORIZONTAL

Catalog: Barrel - Power Connectors

DataSheet: PJ-093H-SMT-TR PDF

Availability: 302 pieces

Unit Price: ~~$1.23000~~

Current price of PJ-093H-SMT-TR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

PJ-093H-SMT-TR Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Connector Type:	Jack
Gender:	Male
Industry Recognized Mating Diameter:	1.70mm ID (0.067"), 4.75mm OD (0.187")
Actual Diameter:	0.065" (1.65mm ID), 0.203" (5.15mm OD)
Number of Positions/Contacts:	2 Conductors, 3 Contacts
Internal Switch(s):	Single Switch, Normally Closed
Mounting Type:	Surface Mount, Right Angle
Mounting Feature:	-
Termination:	Solder
Shielding:	Shielded
Features:	Board Guide
Insulation Color:	-
Voltage - Rated:	24VDC
Current Rating (Amps):	5 A
Mating Length/Depth:	0.315" (8.00mm)
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
