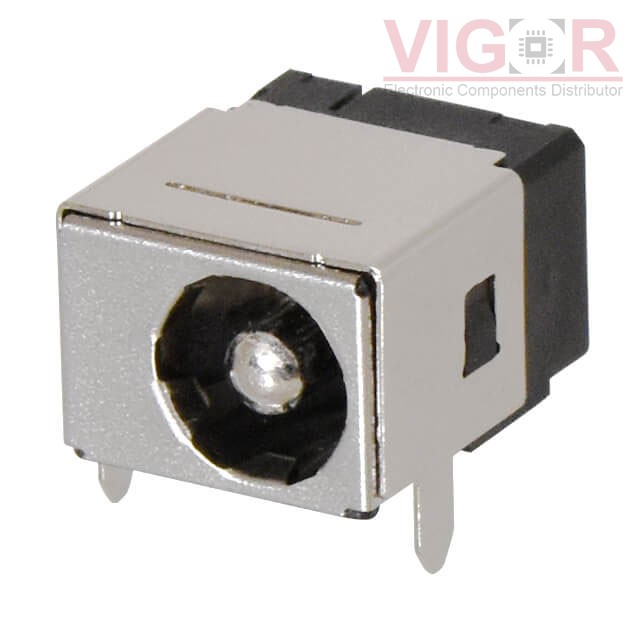

PJ-083BH

Image is for reference,
please contact us to get the real picture

Part No :: PJ-083BH

Manufacturer: CUI Devices

Description: PWR JACK 2.5X5.9MM RT THROUGH HO

Catalog: Barrel - Power Connectors

DataSheet: PJ-083BH PDF

Availability: 675 pieces

Unit Price: ~~$1.41000~~

Current price of PJ-083BH is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

PJ-083BH Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Connector Type:	Jack
Gender:	Male
Industry Recognized Mating Diameter:	2.50mm ID (0.098"), 5.50mm OD (0.217")
Actual Diameter:	0.098" (2.50mm ID), 0.232" (5.90mm OD)
Number of Positions/Contacts:	2 Conductors, 3 Contacts
Internal Switch(s):	Single Switch, Normally Closed
Mounting Type:	Through Hole, Right Angle
Mounting Feature:	-
Termination:	Solder
Shielding:	Shielded
Features:	Board Guide
Insulation Color:	-
Voltage - Rated:	24VDC
Current Rating (Amps):	5 A
Mating Length/Depth:	0.323" (8.20mm)
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
