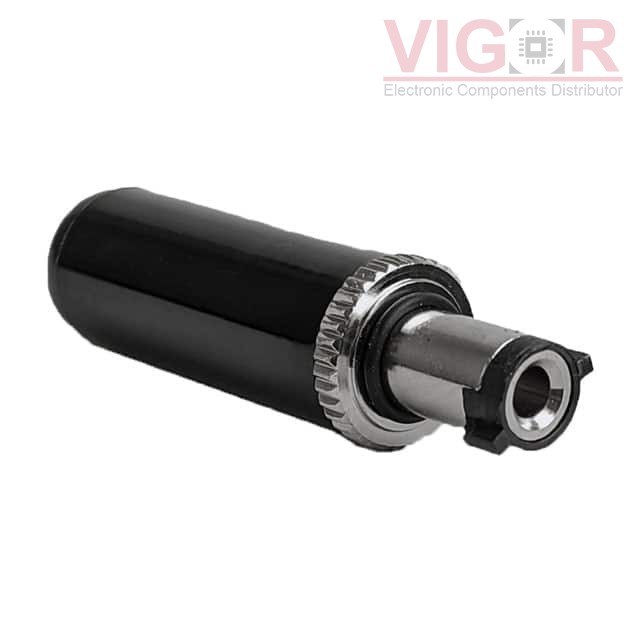

S760BKZ

Part No :: S760BKZ

Manufacturer: Switchcraft / Conxall

VIGOR # :: 3280284

Description: DC POWER JACK, BKZ LOCKING SERIE

Catalog: Barrel - Power Connectors

DataSheet: S760BKZ PDF

Country of origin: -

Date code: -

S760BKZ Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Connector Type:	Plug
Gender:	Female
Industry Recognized Mating Diameter:	2.00mm ID (0.079"), 5.50mm OD (0.217")
Actual Diameter:	0.079" (2.00mm ID), 0.217" (5.50mm OD)
Number of Positions/Contacts:	2 Conductors, 2 Contacts
Internal Switch(s):	Does Not Contain Switch
Mounting Type:	Free Hanging (In-Line)
Mounting Feature:	-
Termination:	Solder Eyelet(s)
Shielding:	Unshielded
Features:	-
Insulation Color:	Black
Voltage - Rated:	-
Current Rating (Amps):	2 A
Mating Length/Depth:	0.374" (9.50mm)
Ingress Protection:	-
Material Flammability Rating:	-

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 97

Shipped from

HK warehouse

Expected Shipping Date

Jul 11 - Jul 15 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$6.6200~~	~~$6.62~~

Current price of S760BKZ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
