PR-1135

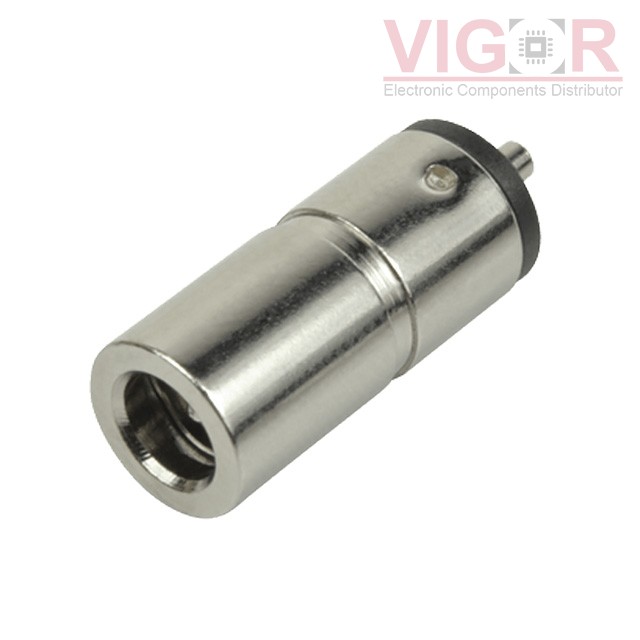

Product image
Product thumb
Part No :

PR-1135

Manufacturer
CUI Devices
VIGOR # :

3280306

Description
POWER JACK, 1.1 X 3.5 MM, STRAIG
Catalog
Barrel - Power Connectors
DataSheet
PR-1135 PDF
Country of origin
-
Date code
-
ads
PR-1135 Specifications
Type Description
Series:-
Package:Bag
Part Status:Active
Connector Type:Jack
Gender:Male
Industry Recognized Mating Diameter:1.00mm ID (0.039"), 3.60mm OD (0.142")
Actual Diameter:0.039" (1.00mm ID), 0.236" (6.00mm OD)
Number of Positions/Contacts:2 Conductors, 2 Contacts
Internal Switch(s):Does Not Contain Switch
Mounting Type:Free Hanging (In-Line)
Mounting Feature:-
Termination:Solder Cup
Shielding:Unshielded
Features:-
Insulation Color:Black
Voltage - Rated:24VDC
Current Rating (Amps):5 A
Mating Length/Depth:0.374" (9.50mm)
Ingress Protection:-
Material Flammability Rating:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 813
Shipped from
HK warehouse
Expected Shipping Date
Apr 07 - Apr 11 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $0.8400 $0.84
10 $0.7370 $7.37
25 $0.6936 $17.34
50 $0.6648 $33.24
100 $0.6358 $63.58
250 $0.5780 $144.50
500 $0.5202 $260.10
1000 $0.4624 $462.40
2500 $0.4190 $1 047.62

Current price of PR-1135 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products
DCJ250-15-A-K1-C

DCJ250-15-A-K1-C

DC HIGH POWER JACK, THRU HOLE, V

KLDX-SMT2-0202-BTR

KLDX-SMT2-0202-BTR

CONN PWR JACK 2X5.5MM SMT

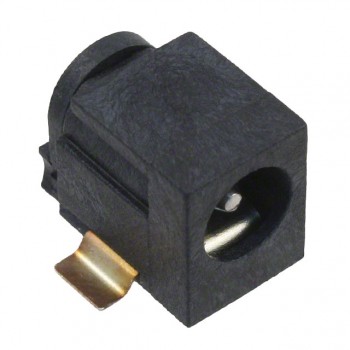

RASM722X
