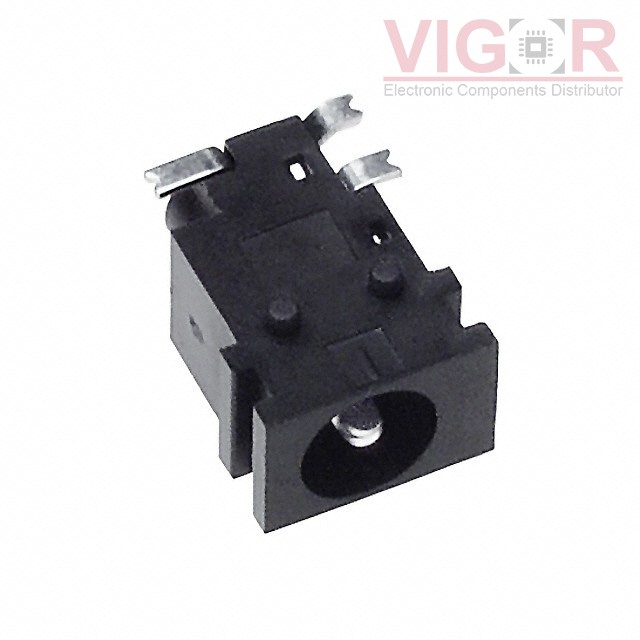

PJ-021-SMT-1

Part No :: PJ-021-SMT-1

Manufacturer: CUI Devices

VIGOR # :: 4713657

Description: CONN PWR JACK 1.75X4.75MM SOLDER

Catalog: Barrel - Power Connectors

DataSheet: PJ-021-SMT-1 PDF

Country of origin: -

Date code: -

PJ-021-SMT-1 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Obsolete
Connector Type:	Jack
Gender:	Male
Industry Recognized Mating Diameter:	1.75mm ID (0.068"), 4.75mm OD (0.187")
Actual Diameter:	0.065" (1.65mm ID), 0.203" (5.15mm OD)
Number of Positions/Contacts:	2 Conductors, 3 Contacts
Internal Switch(s):	Single Switch, Normally Closed
Mounting Type:	Surface Mount, Right Angle
Mounting Feature:	-
Termination:	Solder
Shielding:	Unshielded
Features:	-
Insulation Color:	-
Voltage - Rated:	16VDC
Current Rating (Amps):	5 A
Mating Length/Depth:	0.315" (8.00mm)
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
