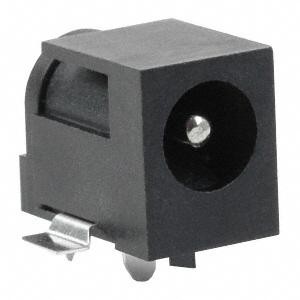

PJ-037A-SMT-TR

Image is for reference,
please contact us to get the real picture

Part No :: PJ-037A-SMT-TR

Manufacturer: CUI Devices

Description: CONN PWR JACK 2X5.5MM SOLDER

Catalog: Barrel - Power Connectors

DataSheet: PJ-037A-SMT-TR PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of PJ-037A-SMT-TR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

PJ-037A-SMT-TR Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Connector Type:	Jack
Gender:	Male
Industry Recognized Mating Diameter:	2.10mm ID (0.083"), 5.50mm OD (0.217")
Actual Diameter:	0.079" (2.00mm ID), 0.248" (6.30mm OD)
Number of Positions/Contacts:	2 Conductors, 3 Contacts
Internal Switch(s):	Single Switch, Normally Closed
Mounting Type:	Surface Mount, Right Angle
Mounting Feature:	-
Termination:	Solder
Shielding:	Unshielded
Features:	Solder Retention
Insulation Color:	-
Voltage - Rated:	16VDC
Current Rating (Amps):	2.5 A
Mating Length/Depth:	-
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
