1761879-1

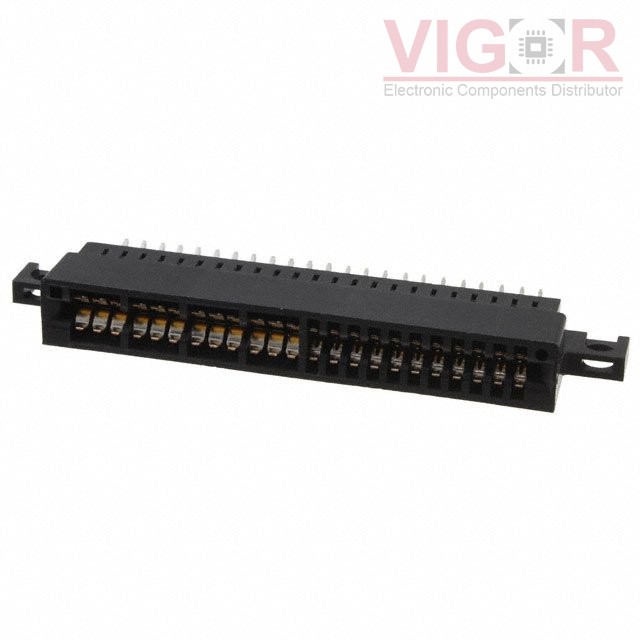

Product image
Product thumb
Part No :

1761879-1

Manufacturer
VIGOR # :

2998509

Description
CONN EDGE DUAL FMALE 30POS GOLD
Catalog
Card Edge Connectors - Edgeboard Connectors
DataSheet
1761879-1 PDF
Country of origin
-
Date code
-
ads
1761879-1 Specifications
Type Description
Series:Standard Edge II
Package:Bulk
Part Status:Active
Card Type:Non Specified - Dual Edge
Gender:Female
Number of Positions/Bay/Row:1; 1; 1; 1; 11
Number of Positions:30 (22 + 8 Power)
Card Thickness:0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows:2
Pitch:-
Read Out:Dual
Features:Card Extender
Mounting Type:Board Edge, Straddle Mount
Termination:Solder
Contact Material:Copper Alloy
Contact Finish:Gold
Contact Finish Thickness:30.0µin (0.76µm)
Contact Type:-
Color:Black
Flange Feature:Flush Mount, Side Opening, Unthreaded, 0.145" (3.68mm) Dia
Operating Temperature:-55°C ~ 85°C
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 69
Shipped from
HK warehouse
Expected Shipping Date
Aug 01 - Aug 05 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $5.8200 $5.82
24 $5.5974 $134.34
48 $5.1587 $247.62
72 $4.9390 $355.61
120 $4.7196 $566.35
264 $4.2805 $1 130.05
504 $4.0610 $2 046.74
1008 $3.8415 $3 872.21

Current price of 1761879-1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products
CNU113-314-2201-VE

CNU113-314-2201-VE

314P, AUTOMOTIVE GRADE MXM3.1 TY

3-5147490-5

3-5147490-5

CONN EDGE DUAL FMALE 70POS 0.100

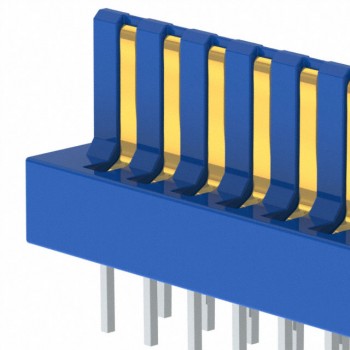

EBM40MMSN
