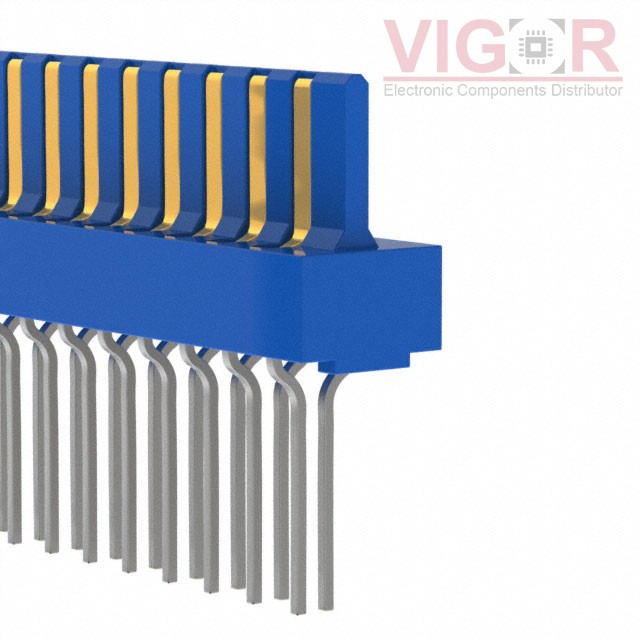

ECM12MMNN

Part No :: ECM12MMNN

Manufacturer: Sullins Connector Solutions

Description: CONN CARDEDGE MALE 24POS 0.156

Catalog: Card Edge Connectors - Edgeboard Connectors

DataSheet: ECM12MMNN PDF

Availability: 0 pieces

Current price of ECM12MMNN is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ECM12MMNN Specifications

Type	Description
Series:	-
Package:	Tray
Part Status:	Active
Card Type:	Fits Female Edgecards
Gender:	Male
Number of Positions/Bay/Row:	12
Number of Positions:	24
Card Thickness:	0.062" (1.57mm)
Number of Rows:	2
Pitch:	0.156" (3.96mm)
Read Out:	Dual
Features:	Card Extender
Mounting Type:	Board Edge, Straddle Mount
Termination:	Solder
Contact Material:	Phosphor Bronze
Contact Finish:	Gold
Contact Finish Thickness:	30.0µin (0.76µm)
Contact Type:	-
Color:	-
Flange Feature:	-
Operating Temperature:	-65°C ~ 125°C
