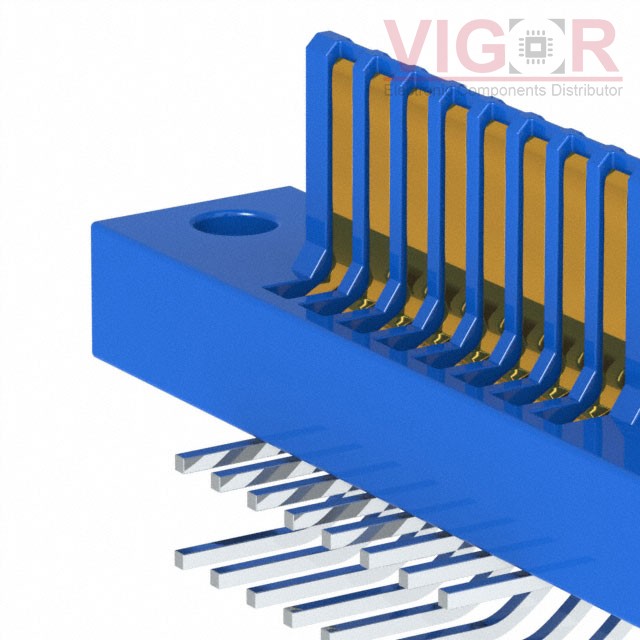

ECC19MMVD

Part No :: ECC19MMVD

Manufacturer: Sullins Connector Solutions

VIGOR # :: 3000909

Description: CONN CARDEDGE MALE 38POS 0.100

Catalog: Card Edge Connectors - Edgeboard Connectors

DataSheet: ECC19MMVD PDF

Current price of ECC19MMVD is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ECC19MMVD Specifications

Type	Description
Series:	-
Package:	Tray
Part Status:	Active
Card Type:	Fits Female Edgecards
Gender:	Male
Number of Positions/Bay/Row:	19
Number of Positions:	38
Card Thickness:	0.062" (1.57mm)
Number of Rows:	2
Pitch:	0.100" (2.54mm)
Read Out:	Dual
Features:	-
Mounting Type:	Through Hole, Right Angle
Termination:	Solder
Contact Material:	Phosphor Bronze
Contact Finish:	Gold
Contact Finish Thickness:	30.0µin (0.76µm)
Contact Type:	-
Color:	-
Flange Feature:	Flush Mount, Top Opening, Unthreaded, 0.125" (3.18mm) Dia
Operating Temperature:	-65°C ~ 125°C
