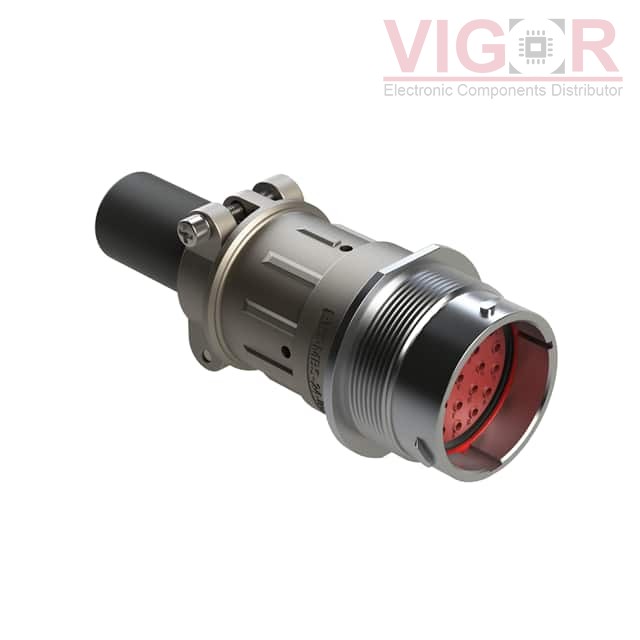

AHDM04-24-23PN-059

Part No :: AHDM04-24-23PN-059

Manufacturer: Tuchel / Amphenol

Description: CONN RCP HSG M 23P INLINE PNL MT

Catalog: Circular Connectors - Housings

DataSheet: AHDM04-24-23PN-059 PDF

Availability: 0 pieces

Current price of AHDM04-24-23PN-059 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

AHDM04-24-23PN-059 Specifications

Type	Description
Series:	DuraMate™ AHDM
Package:	Box
Part Status:	Active
Connector Type:	Receptacle Housing
Type:	For Male Pins
Number of Positions:	23
Shell Size - Insert:	24-23
Shell Size, MIL:	-
Contact Type:	Crimp
Contact Size:	16
Mounting Type:	Free Hanging (In-Line); Panel Mount
Mounting Feature:	Bulkhead - Front Side Nut
Fastening Type:	Bayonet Lock
Orientation:	Keyed
Shell Material:	Zinc Alloy
Shell Finish:	Nickel
Housing Color:	Silver
Ingress Protection:	IP67/IP69K - Dust Tight, Water Resistant, Waterproof
Material Flammability Rating:	-
Features:	Backshell, Cable Clamp
Shielding:	Unshielded
