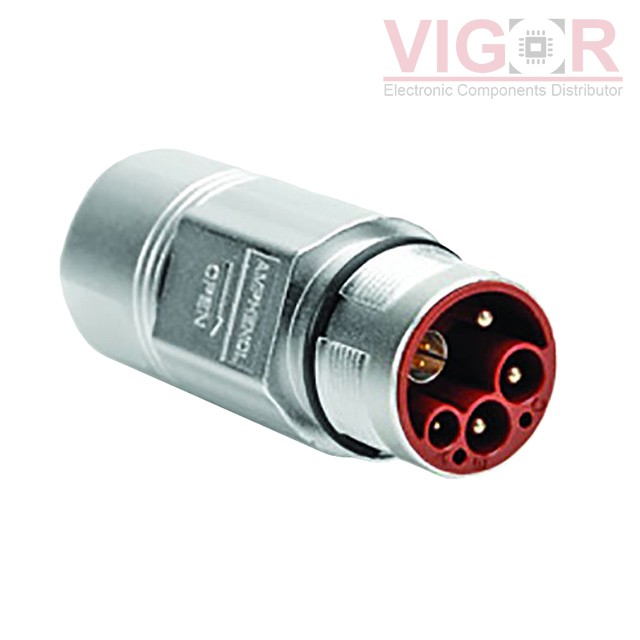

MB3ZSN8HS1

Part No :: MB3ZSN8HS1

Manufacturer: Tuchel / Amphenol

Description: CONN RCPT HSG MALE 5POS INLINE

Catalog: Circular Connectors - Housings

DataSheet: MB3ZSN8HS1 PDF

Availability: 25 pieces

Current price of MB3ZSN8HS1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

MB3ZSN8HS1 Specifications

Type	Description
Series:	MotionGrade™ M23 Hybrid Series, Threaded
Package:	Bulk
Part Status:	Active
Connector Type:	Receptacle Housing
Type:	For Male Pins
Number of Positions:	5 (1 + 2 Power + 1 Quadrax + PE)
Shell Size - Insert:	M23-5
Shell Size, MIL:	-
Contact Type:	Crimp
Contact Size:	1.0mm (1), 2.0mm Power (3), 0.7mm Quadrax (1)
Mounting Type:	Free Hanging (In-Line)
Mounting Feature:	-
Fastening Type:	Threaded
Orientation:	Keyed
Shell Material:	Zinc Die Cast
Shell Finish:	Nickel
Housing Color:	Silver
Ingress Protection:	IP67 - Dust Tight, Waterproof
Material Flammability Rating:	-
Features:	Backshell
Shielding:	Shielded
