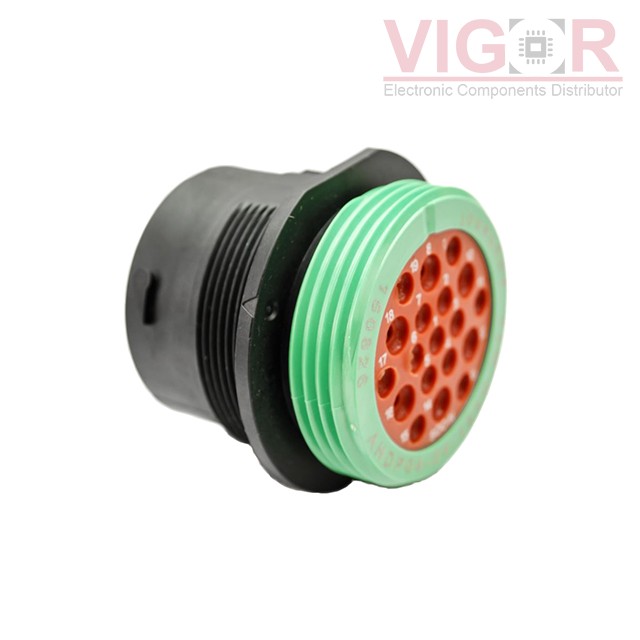

AHDP04-24-19SN-WTA

Part No :: AHDP04-24-19SN-WTA

Manufacturer: Tuchel / Amphenol

VIGOR # :: 3181184

Description: CONN RCPT HSG FMALE 19POS PNL MT

Catalog: Circular Connectors - Housings

DataSheet: AHDP04-24-19SN-WTA PDF

Country of origin: -

Date code: -

AHDP04-24-19SN-WTA Specifications

Type	Description
Series:	DuraMate™ AHDP
Package:	Bulk
Part Status:	Active
Connector Type:	Receptacle Housing
Type:	For Female Sockets
Number of Positions:	19 (Radsok)
Shell Size - Insert:	24-19
Shell Size, MIL:	-
Contact Type:	Crimp
Contact Size:	12 (6), 16 (13)
Mounting Type:	Panel Mount
Mounting Feature:	Bulkhead - Front Side Nut
Fastening Type:	Bayonet Lock
Orientation:	Keyed
Shell Material:	Thermoplastic
Shell Finish:	-
Housing Color:	Black
Ingress Protection:	IP67/IP69K - Dust Tight, Water Resistant, Waterproof
Material Flammability Rating:	-
Features:	-
Shielding:	Unshielded

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 650

Shipped from

HK warehouse

Expected Shipping Date

Nov 05 - Nov 09 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$9.3670~~	~~$9.37~~
10	~~$8.9632~~	~~$89.63~~
25	~~$8.1484~~	~~$203.71~~
50	~~$7.7410~~	~~$387.05~~
100	~~$7.5372~~	~~$753.72~~
250	~~$6.7224~~	~~$1 680.60~~
500	~~$6.3150~~	~~$3 157.50~~
1000	~~$5.5816~~	~~$5 581.64~~

Current price of AHDP04-24-19SN-WTA is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
