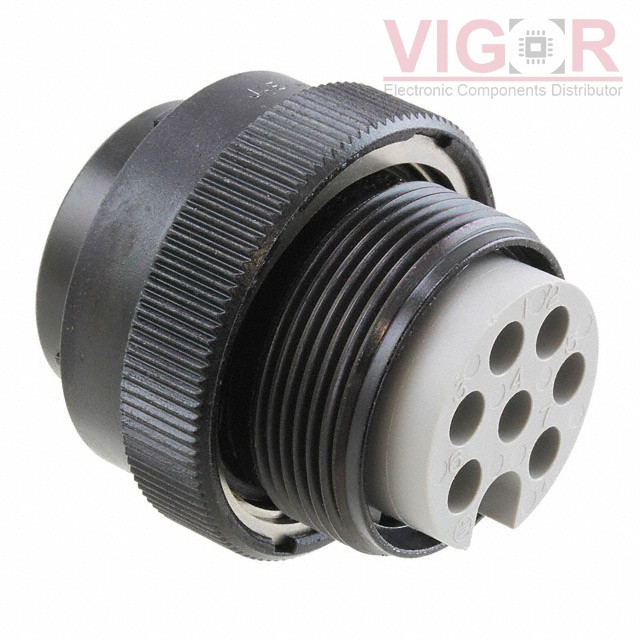

JL05-6A22-23SC-F0-R

Part No :: JL05-6A22-23SC-F0-R

Manufacturer: JAE Electronics

VIGOR # :: 3182796

Description: CONN PLG HSG FMALE 8POS INLINE

Catalog: Circular Connectors - Housings

DataSheet: JL05-6A22-23SC-F0-R PDF

Country of origin: -

Date code: -

JL05-6A22-23SC-F0-R Specifications

Type	Description
Series:	JL05
Package:	Tray
Part Status:	Active
Connector Type:	Plug Housing
Type:	For Female Sockets
Number of Positions:	8 (7 + PE)
Shell Size - Insert:	22-23
Shell Size, MIL:	-
Contact Type:	Crimp
Contact Size:	12
Mounting Type:	Free Hanging (In-Line)
Mounting Feature:	-
Fastening Type:	Bayonet Lock
Orientation:	N (Normal)
Shell Material:	Aluminum
Shell Finish:	Zinc
Housing Color:	Black
Ingress Protection:	IP67 - Dust Tight, Waterproof
Material Flammability Rating:	UL94 V-0
Features:	Coupling Nut
Shielding:	Unshielded
