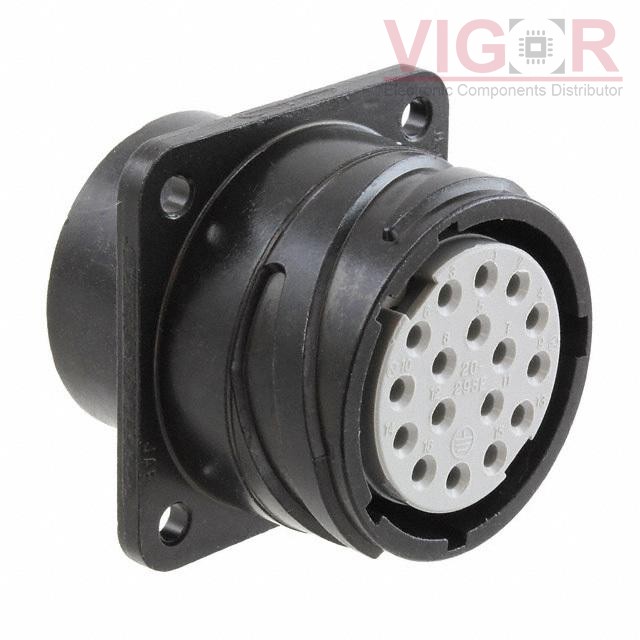

JL05-2A20-29SCW-F0-R

Part No :: JL05-2A20-29SCW-F0-R

Manufacturer: JAE Electronics

VIGOR # :: 4701607

Description: CONN RCPT HSG FMALE 17POS PNL MT

Catalog: Circular Connectors - Housings

DataSheet: JL05-2A20-29SCW-F0-R PDF

Country of origin: -

Date code: -

JL05-2A20-29SCW-F0-R Specifications

Type	Description
Series:	JL05
Package:	Bulk
Part Status:	Obsolete
Connector Type:	Receptacle Housing
Type:	For Female Sockets
Number of Positions:	17 (16 + PE)
Shell Size - Insert:	20-29
Shell Size, MIL:	-
Contact Type:	Crimp
Contact Size:	16
Mounting Type:	Panel Mount
Mounting Feature:	Flange
Fastening Type:	Bayonet Lock
Orientation:	W
Shell Material:	Aluminum
Shell Finish:	Zinc
Housing Color:	Black
Ingress Protection:	IP67 - Dust Tight, Waterproof
Material Flammability Rating:	UL94 V-0
Features:	-
Shielding:	Unshielded
