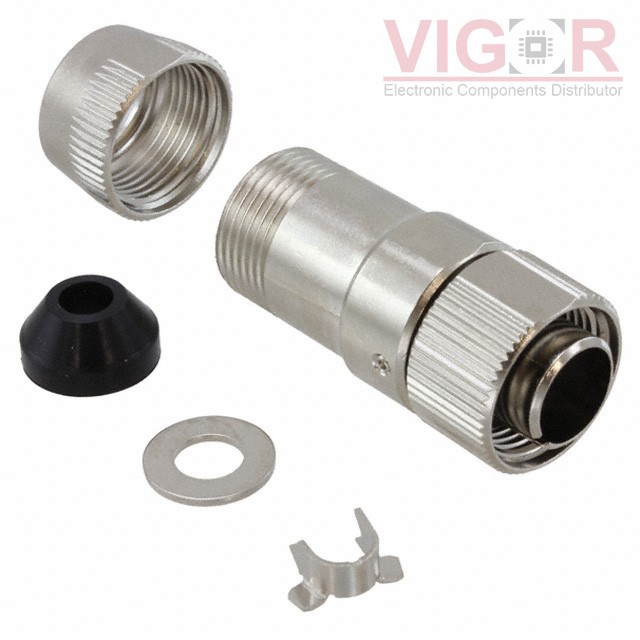

JB1DB10PL2

Part No :: JB1DB10PL2

Manufacturer: JAE Electronics

VIGOR # :: 4702104

Description: CONN PLUG HSG MALE 10POS INLINE

Catalog: Circular Connectors - Housings

DataSheet: JB1DB10PL2 PDF

Country of origin: -

Date code: -

JB1DB10PL2 Specifications

Type	Description
Series:	JB1
Package:	Bulk
Part Status:	Obsolete
Connector Type:	Plug Housing
Type:	For Male Pins
Number of Positions:	10
Shell Size - Insert:	B10
Shell Size, MIL:	-
Contact Type:	Crimp
Contact Size:	22
Mounting Type:	Free Hanging (In-Line)
Mounting Feature:	-
Fastening Type:	Threaded
Orientation:	Keyed
Shell Material:	Zinc Alloy
Shell Finish:	Nickel
Housing Color:	Silver
Ingress Protection:	IP67 - Dust Tight, Waterproof
Material Flammability Rating:	-
Features:	Backshell, Cable Clamp, Coupling Nut
Shielding:	Shielded

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Oct 12 - Oct 16 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price

Current price of JB1DB10PL2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

MS27472T10F98BA

8T 6C 6#20 RECP

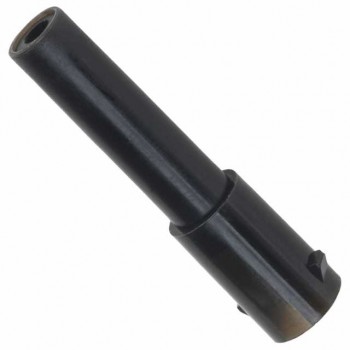

207902-1
