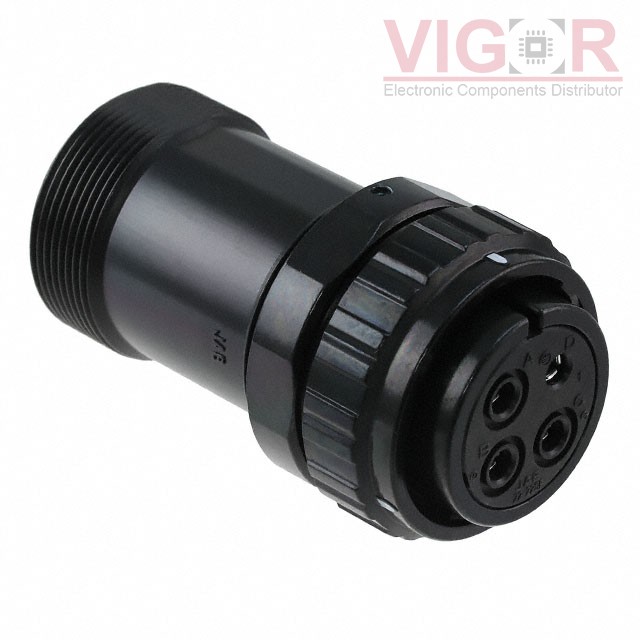

JL10-6A22-22SE-EB1

Part No :: JL10-6A22-22SE-EB1

Manufacturer: JAE Electronics

VIGOR # :: 3286814

Description: CONN PLUG FMALE 4P SOLDER CUP

Catalog: Circular Connectors

DataSheet: JL10-6A22-22SE-EB1 PDF

Country of origin: -

Date code: -

JL10-6A22-22SE-EB1 Specifications

Type	Description
Series:	JL10
Package:	Tray
Part Status:	Active
Connector Type:	Plug, Female Sockets
Number of Positions:	4 (3 + PE)
Shell Size - Insert:	22-22
Shell Size, MIL:	-
Mounting Type:	Free Hanging (In-Line)
Mounting Feature:	-
Termination:	Solder Cup
Fastening Type:	Bayonet Lock
Orientation:	N (Normal)
Shell Material:	Aluminum Alloy
Shell Finish:	Zinc
Contact Finish - Mating:	Silver
Color:	Black
Ingress Protection:	IP67 - Dust Tight, Waterproof
Material Flammability Rating:	-
Features:	Backshell, Coupling Nut, Ground
Shielding:	-
Current Rating (Amps):	-
Voltage Rating:	-
Cable Opening:	-
Operating Temperature:	-

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Jan 01 - Jan 05 2025

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$84.48~~	~~$84.48~~
10	~~$84.48~~	~~$844.80~~

Current price of JL10-6A22-22SE-EB1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
