JL05-6A20-29S-R

Part No :: JL05-6A20-29S-R

Manufacturer: JAE Electronics

VIGOR # :: 3291648

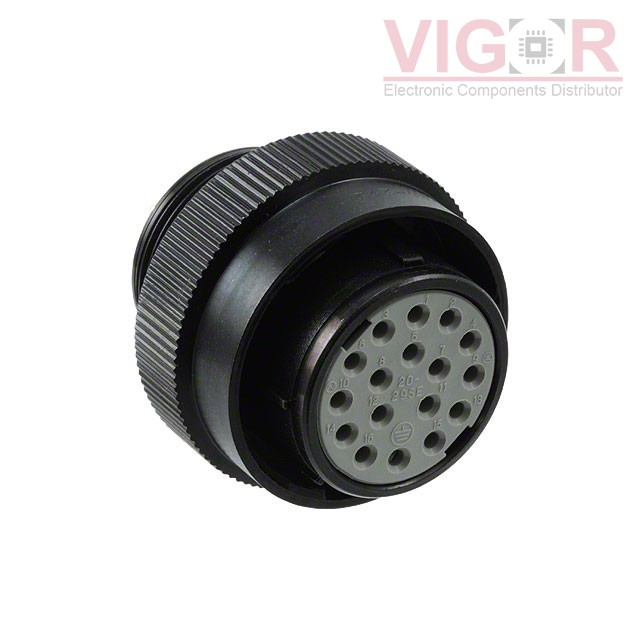

Description: CONN PLUG FMALE 17POS SIL SOLDER

Catalog: Circular Connectors

DataSheet: JL05-6A20-29S-R PDF

Country of origin: -

Date code: -

JL05-6A20-29S-R Specifications

Type	Description
Series:	JL05
Package:	Bulk
Part Status:	Active
Connector Type:	Plug, Female Sockets
Number of Positions:	17 (16 + PE)
Shell Size - Insert:	20-29
Shell Size, MIL:	-
Mounting Type:	Free Hanging (In-Line)
Mounting Feature:	-
Termination:	Solder
Fastening Type:	Bayonet Lock
Orientation:	N (Normal)
Shell Material:	Aluminum Alloy
Shell Finish:	Zinc
Contact Finish - Mating:	Silver
Color:	Black
Ingress Protection:	IP67 - Dust Tight, Waterproof
Material Flammability Rating:	-
Features:	Coupling Nut, Ground Lug
Shielding:	-
Current Rating (Amps):	13A
Voltage Rating:	-
Cable Opening:	-
Operating Temperature:	-55°C ~ 125°C
