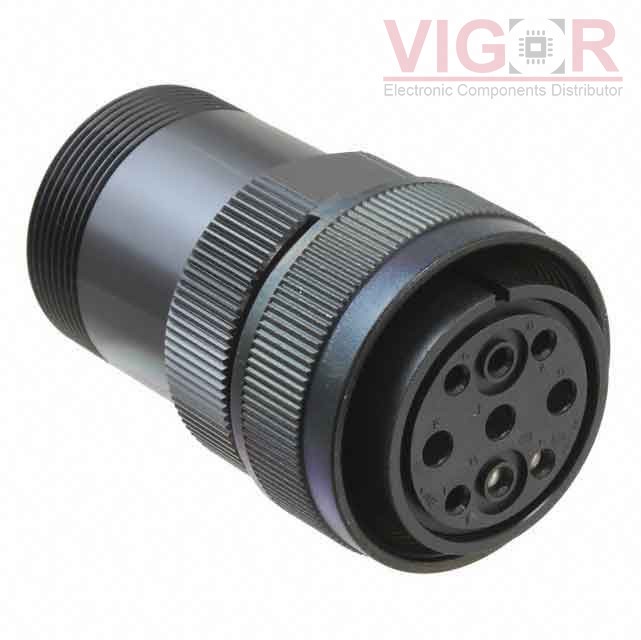

JL04V-6A24-11SE-EB-R

Part No :: JL04V-6A24-11SE-EB-R

Manufacturer: JAE Electronics

Description: CONN PLUG FMALE 9P SOLDER CUP

Catalog: Circular Connectors

DataSheet: JL04V-6A24-11SE-EB-R PDF

Availability: 0 pieces

Current price of JL04V-6A24-11SE-EB-R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

JL04V-6A24-11SE-EB-R Specifications

Type	Description
Series:	JL04V
Package:	Bulk
Part Status:	Active
Connector Type:	Plug, Female Sockets
Number of Positions:	9 (8 + PE)
Shell Size - Insert:	24-11
Shell Size, MIL:	-
Mounting Type:	Free Hanging (In-Line)
Mounting Feature:	-
Termination:	Solder Cup
Fastening Type:	Threaded
Orientation:	N (Normal)
Shell Material:	Aluminum Alloy
Shell Finish:	Zinc
Contact Finish - Mating:	Silver
Color:	Black
Ingress Protection:	IP67 - Dust Tight, Waterproof
Material Flammability Rating:	-
Features:	Backshell, Coupling Nut, Ground
Shielding:	-
Current Rating (Amps):	23A, 46A
Voltage Rating:	-
Cable Opening:	-
Operating Temperature:	-55°C ~ 125°C
