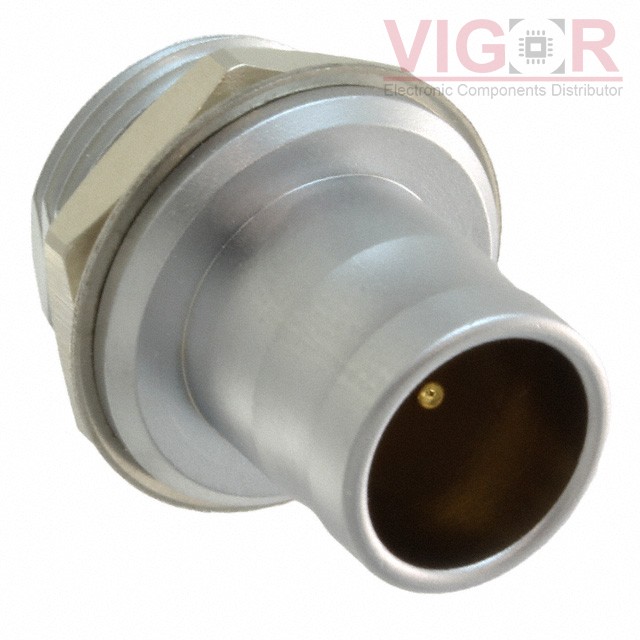

822B012-103R001

Part No :: 822B012-103R001

Manufacturer: NorComp

VIGOR # :: 3304138

Description: CONN PLUG MALE 12P GOLD SLDR CUP

Catalog: Circular Connectors

DataSheet: 822B012-103R001 PDF

Country of origin: -

Date code: -

822B012-103R001 Specifications

Type	Description
Series:	QUIK-LOQ™ 822B
Package:	Tray
Part Status:	Active
Connector Type:	Plug, Male Pins
Number of Positions:	12
Shell Size - Insert:	-
Shell Size, MIL:	-
Mounting Type:	Panel Mount
Mounting Feature:	Bulkhead - Rear Side Nut
Termination:	Solder Cup
Fastening Type:	Push-Pull
Orientation:	Keyed
Shell Material:	Brass
Shell Finish:	Nickel
Contact Finish - Mating:	Gold
Color:	Silver
Ingress Protection:	IP50 - Dust Protected
Material Flammability Rating:	-
Features:	-
Shielding:	Shielded
Current Rating (Amps):	7A
Voltage Rating:	480V
Cable Opening:	0.531" (13.50mm)
Operating Temperature:	-40°C ~ 200°C

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 1

Shipped from

HK warehouse

Expected Shipping Date

May 28 - Jun 01 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$47.3700~~	~~$47.37~~
20	~~$44.5864~~	~~$891.73~~
40	~~$43.1931~~	~~$1 727.72~~
60	~~$40.4064~~	~~$2 424.38~~
100	~~$38.1771~~	~~$3 817.71~~
260	~~$37.0624~~	~~$9 636.23~~

Current price of 822B012-103R001 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
