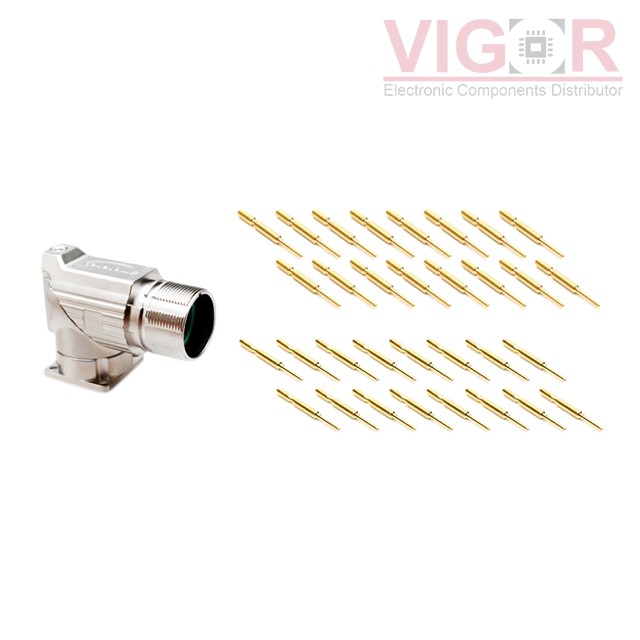

MA5RAE1602-KIT

Part No :: MA5RAE1602-KIT

Manufacturer: Tuchel / Amphenol

VIGOR # :: 3311633

Description: CONN RCPT MALE 16POS GOLD CRIMP

Catalog: Circular Connectors

DataSheet: MA5RAE1602-KIT PDF

Country of origin: -

Date code: -

MA5RAE1602-KIT Specifications

Type	Description
Series:	MotionGrade™ Elite M23 Signal Series, Checkmate™ Quick Locking
Package:	Bulk
Part Status:	Active
Connector Type:	Receptacle, Male Pins
Number of Positions:	16
Shell Size - Insert:	M23-16
Shell Size, MIL:	-
Mounting Type:	Panel Mount, Right Angle
Mounting Feature:	Flange
Termination:	Crimp
Fastening Type:	Threaded
Orientation:	N (Normal)
Shell Material:	Zinc Die Cast
Shell Finish:	Nickel
Contact Finish - Mating:	Gold
Color:	Silver
Ingress Protection:	IP67 - Dust Tight, Waterproof
Material Flammability Rating:	-
Features:	Backshell, Rotatable
Shielding:	-
Current Rating (Amps):	9A
Voltage Rating:	125VAC/DC
Cable Opening:	-
Operating Temperature:	-20°C ~ 130°C

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 20

Shipped from

HK warehouse

Expected Shipping Date

May 25 - May 29 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$21.4800~~	~~$21.48~~
10	~~$19.5683~~	~~$195.68~~
25	~~$18.8233~~	~~$470.58~~
50	~~$17.7600~~	~~$888.00~~
100	~~$17.2282~~	~~$1 722.82~~
250	~~$16.3774~~	~~$4 094.35~~
500	~~$15.9520~~	~~$7 976.00~~

Current price of MA5RAE1602-KIT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

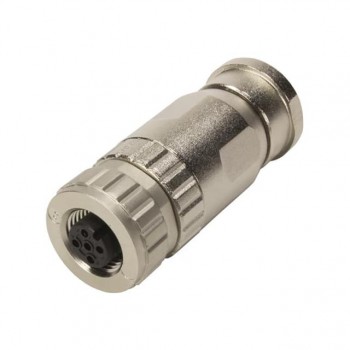

21033292401

CONN PLUG FMALE 4POS GOLD SCREW

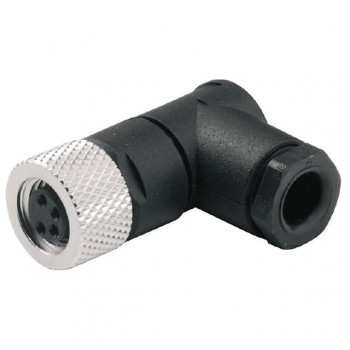

1920980000
