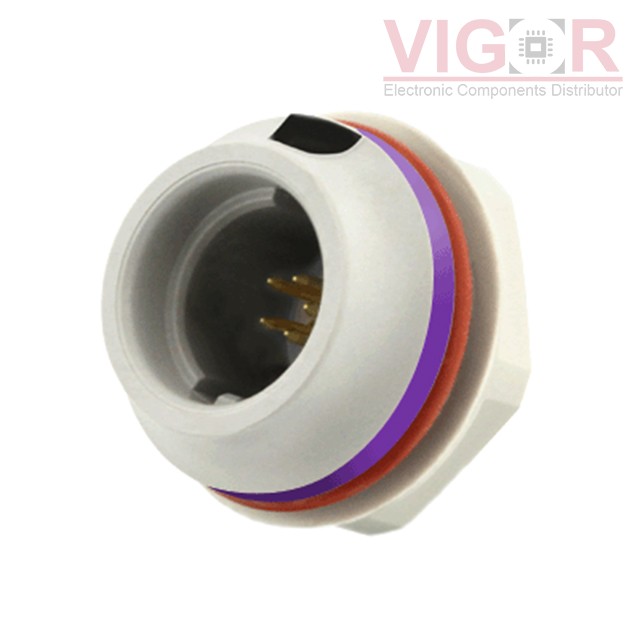

JMXHH1G05MCUDSP

Part No :: JMXHH1G05MCUDSP

Manufacturer: Souriau-Sunbank by Eaton

VIGOR # :: 4714183

Description: CONN RCPT MALE 5POS GOLD CRIMP

Catalog: Circular Connectors

DataSheet: JMXHH1G05MCUDSP PDF

Country of origin: -

Date code: -

JMXHH1G05MCUDSP Specifications

Type	Description
Series:	JMX
Package:	Bulk
Part Status:	Active
Connector Type:	Receptacle, Male Pins
Number of Positions:	5
Shell Size - Insert:	1-5
Shell Size, MIL:	-
Mounting Type:	Panel Mount
Mounting Feature:	Bulkhead - Rear Side Nut
Termination:	Crimp
Fastening Type:	Push-Pull
Orientation:	G
Shell Material:	Polyetherimide (PEI)
Shell Finish:	-
Contact Finish - Mating:	Gold
Color:	Light Gray, Purple
Ingress Protection:	IP50/IP68 - Dust Protected, Dust Tight, Waterproof
Material Flammability Rating:	UL94 V-0
Features:	-
Shielding:	Unshielded
Current Rating (Amps):	7A
Voltage Rating:	230V
Cable Opening:	-
Operating Temperature:	-20°C ~ 100°C
