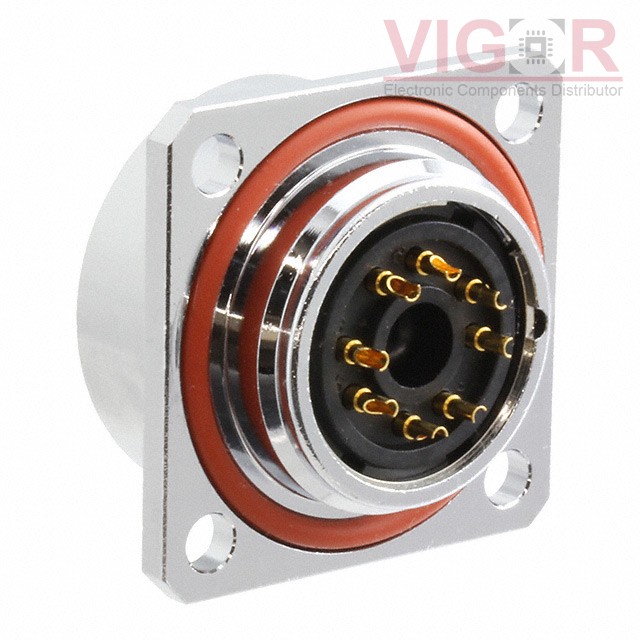

JB5AX08YL3030

Part No :: JB5AX08YL3030

Manufacturer: JAE Electronics

VIGOR # :: 4714602

Description: CONN CIRC RCPT 8POS SOLDER CUP

Catalog: Circular Connectors

DataSheet: JB5AX08YL3030 PDF

Country of origin: -

Date code: -

JB5AX08YL3030 Specifications

Type	Description
Series:	JB5
Package:	Bulk
Part Status:	Obsolete
Connector Type:	Receptacle, Female Sockets and Male Pins
Number of Positions:	8
Shell Size - Insert:	X
Shell Size, MIL:	-
Mounting Type:	Panel Mount
Mounting Feature:	Flange
Termination:	Solder Cup
Fastening Type:	Push-Pull
Orientation:	Keyed
Shell Material:	Copper Alloy
Shell Finish:	Chromium
Contact Finish - Mating:	Gold
Color:	-
Ingress Protection:	IP68 - Dust Tight, Waterproof
Material Flammability Rating:	-
Features:	-
Shielding:	Shielded
Current Rating (Amps):	2A
Voltage Rating:	200VAC
Cable Opening:	-
Operating Temperature:	-55°C ~ 85°C

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Apr 08 - Apr 12 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price

Current price of JB5AX08YL3030 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

FGG.0B.307.CLAD21Z

CONN PLUG MALE 7P GOLD SLDR CUP

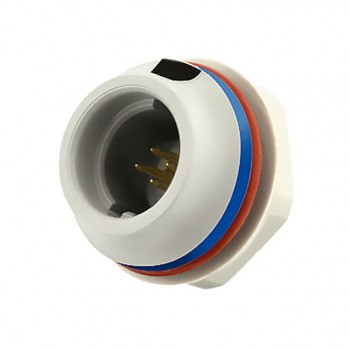

JMXHH1G04MSUDSA
