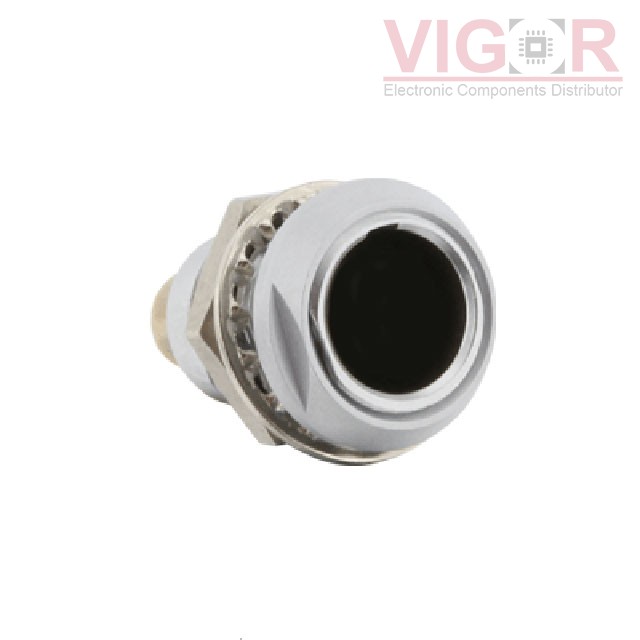

JBXEA1G05FCSDS

Part No :: JBXEA1G05FCSDS

Manufacturer: Souriau-Sunbank by Eaton

VIGOR # :: 4714989

Description: CONN RCPT FMALE 5POS GOLD CRIMP

Catalog: Circular Connectors

DataSheet: JBXEA1G05FCSDS PDF

Country of origin: -

Date code: -

JBXEA1G05FCSDS Specifications

Type	Description
Series:	JBX
Package:	Bulk
Part Status:	Active
Connector Type:	Receptacle, Female Sockets
Number of Positions:	5
Shell Size - Insert:	1
Shell Size, MIL:	-
Mounting Type:	Panel Mount
Mounting Feature:	Bulkhead - Front or Rear Side Nut
Termination:	Crimp
Fastening Type:	Push-Pull
Orientation:	G
Shell Material:	Brass
Shell Finish:	Chrome over Nickel
Contact Finish - Mating:	Gold
Color:	Silver
Ingress Protection:	IP40
Material Flammability Rating:	UL94 V-0
Features:	-
Shielding:	Shielded
Current Rating (Amps):	9A
Voltage Rating:	660V
Cable Opening:	-
Operating Temperature:	-40°C ~ 125°C
