749230-1

Part No :: 749230-1

Manufacturer

VIGOR # :: 4715057

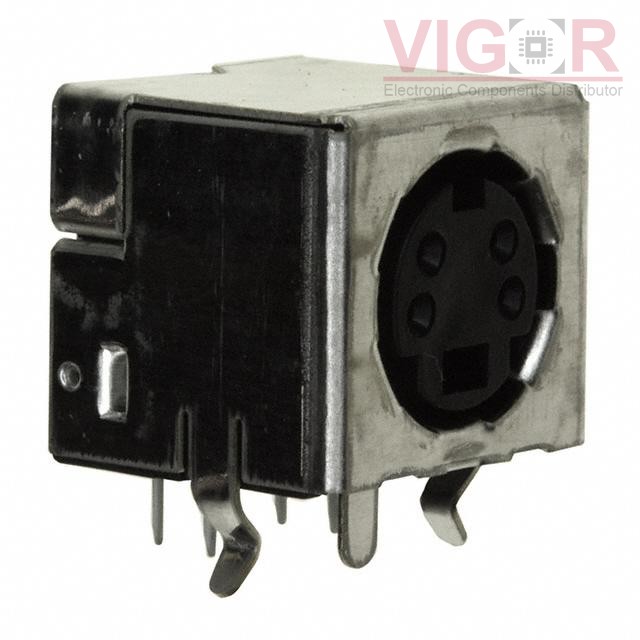

Description: CONN RCPT FMALE MINI DIN 4P SLDR

Catalog: Circular Connectors

DataSheet: 749230-1 PDF

Country of origin: -

Date code: -

749230-1 Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Connector Type:	Receptacle, Female Sockets
Number of Positions:	4
Shell Size - Insert:	Mini DIN
Shell Size, MIL:	-
Mounting Type:	Through Hole, Right Angle
Mounting Feature:	-
Termination:	Solder
Fastening Type:	Push-Pull
Orientation:	Keyed
Shell Material:	Thermoplastic
Shell Finish:	-
Contact Finish - Mating:	Gold
Color:	-
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Features:	Board Lock
Shielding:	Shielded
Current Rating (Amps):	1A
Voltage Rating:	30VDC
Cable Opening:	-
Operating Temperature:	-55°C ~ 105°C
