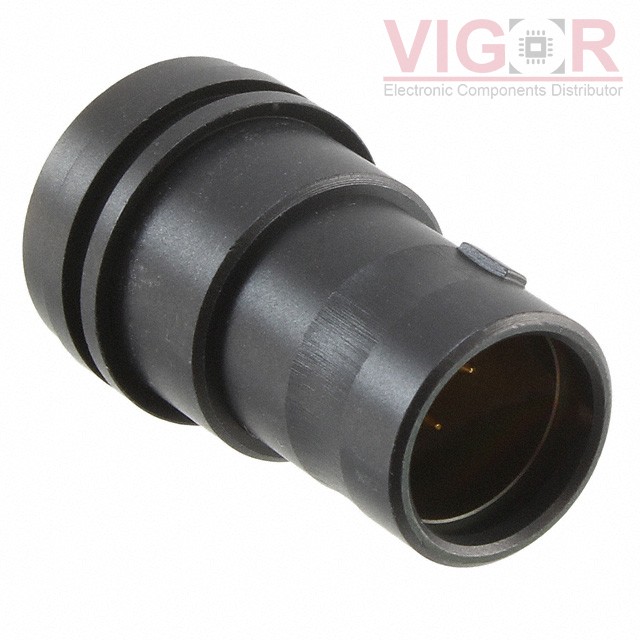

JDXFD2T003MSN

Part No :: JDXFD2T003MSN

Manufacturer: Souriau-Sunbank by Eaton

VIGOR # :: 4715300

Description: CONN PLUG MALE 9P GOLD SLDR CUP

Catalog: Circular Connectors

DataSheet: JDXFD2T003MSN PDF

Country of origin: -

Date code: -

JDXFD2T003MSN Specifications

Type	Description
Series:	JDX Hybrid
Package:	Bulk
Part Status:	Active
Connector Type:	Plug, Male Pins
Number of Positions:	9 (6 + 3 Power)
Shell Size - Insert:	2-003
Shell Size, MIL:	-
Mounting Type:	Free Hanging (In-Line)
Mounting Feature:	-
Termination:	Solder Cup
Fastening Type:	Push-Pull
Orientation:	T
Shell Material:	Brass
Shell Finish:	Black Chrome over Nickel
Contact Finish - Mating:	Gold
Color:	Black
Ingress Protection:	IP68 - Dust Tight, Waterproof
Material Flammability Rating:	-
Features:	-
Shielding:	Shielded
Current Rating (Amps):	7A, 15A
Voltage Rating:	700VDC
Cable Opening:	-
Operating Temperature:	-40°C ~ 125°C

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Jan 04 - Jan 08 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price

Current price of JDXFD2T003MSN is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

W6282-6PG-P-516

CONN PLUG MALE 6POS SOLDER CUP

W6280-4SG-P-318

CONN PLUG FMALE 4POS GOLD CRIMP

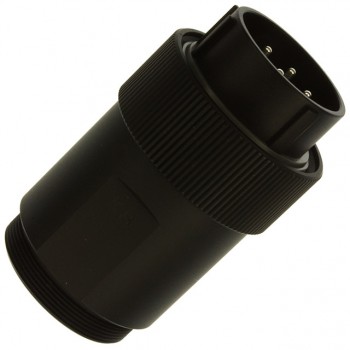

JR25WP-8P(71)
