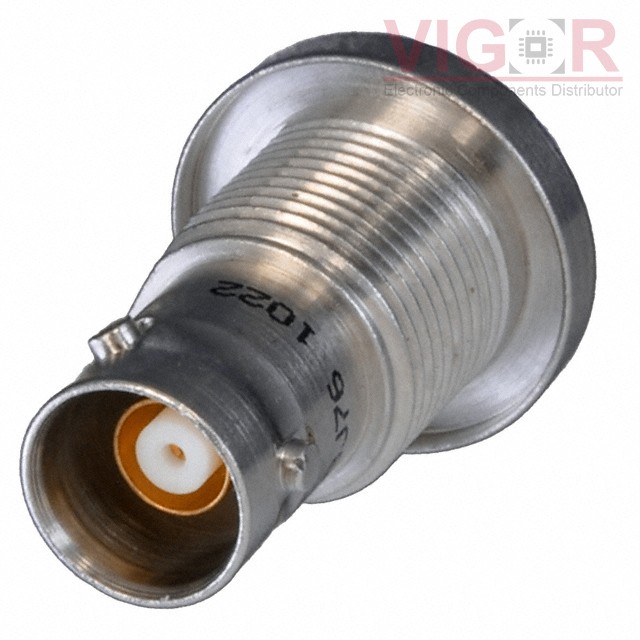

BJ76

Part No :: BJ76

Manufacturer: Vitelec / Cinch Connectivity Solutions

VIGOR # :: 3318074

Description: CONN TRB JACK STR SOLDER

Catalog: Coaxial Connectors (RF)

DataSheet: BJ76 PDF

Country of origin: -

Date code: -

BJ76 Specifications

Type	Description
Series:	70
Package:	Bulk
Part Status:	Active
Connector Style:	TRB, Twinaxial/Triaxial
Connector Type:	Jack, Female Socket (Concentric)
Contact Termination:	Solder Cup
Shield Termination:	Solder Tag
Impedance:	Non-Constant
Mounting Type:	Panel Mount
Mounting Feature:	Bulkhead - Front Side Nut
Cable Group:	-
Fastening Type:	Bayonet Lock
Frequency - Max:	500 MHz
Number of Ports:	1
Features:	Extended Insulation, Three Lug
Housing Color:	Silver
Ingress Protection:	-

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 103

Shipped from

HK warehouse

Expected Shipping Date

Dec 28 - Jan 01 2025

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$23.74~~	~~$23.74~~
10	~~$21.43~~	~~$214.34~~
25	~~$20.54~~	~~$513.40~~
50	~~$19.63~~	~~$981.50~~

Current price of BJ76 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
