2301844-1

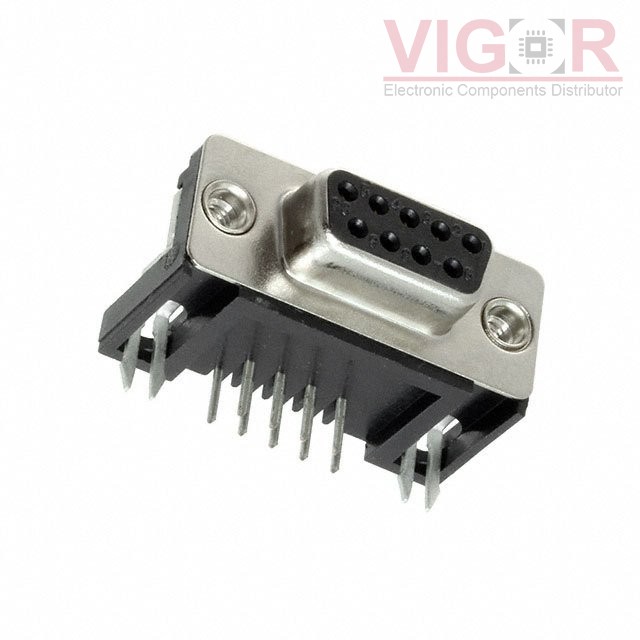

Product image
Product thumb
Part No :

2301844-1

Manufacturer
TE Connectivity AMP Connectors
VIGOR # :

3322577

Description
CONN D-SUB RCPT 9POS R/A SLDR
Catalog
D-Sub Connectors
DataSheet
2301844-1 PDF
Country of origin
-
Date code
-
ads
2301844-1 Specifications
Type Description
Series:AMPLIMITE HD-20
Package:-
Part Status:Active
Connector Style:D-Sub
Connector Type:Receptacle, Female Sockets
Number of Positions:9
Number of Rows:2
Mounting Type:Through Hole, Right Angle
Shell Size, Connector Layout:1 (DE, E)
Contact Type:Signal
Flange Feature:Board Side (4-40)
Termination:Solder
Shell Material, Finish:Steel, Nickel Plated
Contact Finish:Gold
Contact Finish Thickness:15.0µin (0.38µm)
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Current Rating (Amps):2A per Contact
Backset Spacing:0.411" (10.43mm)
Features:Board Lock
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 6261
Shipped from
HK warehouse
Expected Shipping Date
Jan 08 - Jan 12 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $2.07 $2.07
10 $1.87 $18.74
25 $1.76 $43.99
90 $1.68 $151.51
180 $1.61 $289.24
270 $1.45 $392.53
540 $1.34 $723.09
1080 $1.15 $1 239.57
2520 $1.07 $2 699.52

Current price of 2301844-1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
