09565527613

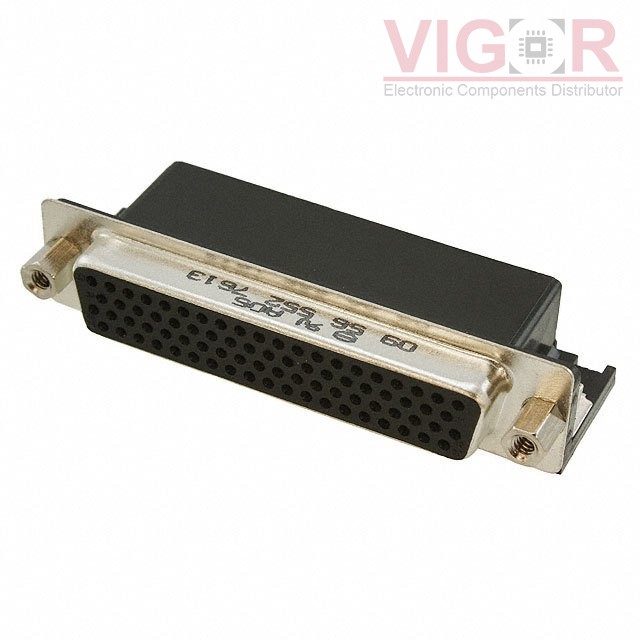

Image is for reference,
please contact us to get the real picture

Part No :: 09565527613

Manufacturer: HARTING

Description: CONN D-SUB HD RCPT 78P R/A SLDR

Catalog: D-Sub Connectors

DataSheet: 09565527613 PDF

Availability: 157 pieces

Unit Price: ~~$20.11000~~

Current price of 09565527613 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

09565527613 Specifications

Type	Description
Series:	-
Package:	Tray
Part Status:	Active
Connector Style:	D-Sub, High Density
Connector Type:	Receptacle, Female Sockets
Number of Positions:	78
Number of Rows:	4
Mounting Type:	Through Hole, Right Angle
Shell Size, Connector Layout:	5 (DD, D) High Density
Contact Type:	Signal
Flange Feature:	Mating Side, Female Screwlock (4-40)
Termination:	Solder
Shell Material, Finish:	Steel, Nickel Plated
Contact Finish:	-
Contact Finish Thickness:	-
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Current Rating (Amps):	2A
Backset Spacing:	0.350" (8.89mm)
Features:	Board Lock

Please confirm the specifications of the products when ordering.
