5747842-3

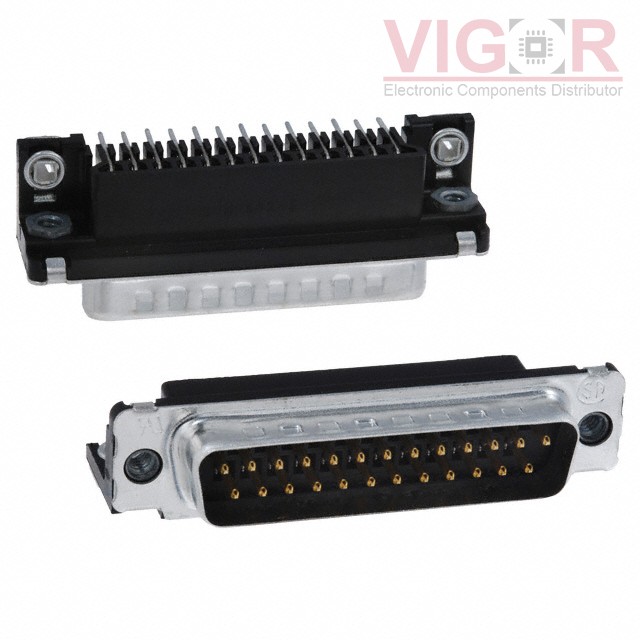

Product image
Product thumb
Part No :

5747842-3

Manufacturer
TE Connectivity AMP Connectors
VIGOR # :

3323665

Description
CONN D-SUB PLUG 25POS R/A SLDR
Catalog
D-Sub Connectors
DataSheet
5747842-3 PDF
Country of origin
-
Date code
-
ads
5747842-3 Specifications
Type Description
Series:AMPLIMITE HD-20
Package:Tray
Part Status:Active
Connector Style:D-Sub
Connector Type:Plug, Male Pins
Number of Positions:25
Number of Rows:2
Mounting Type:Through Hole, Right Angle
Shell Size, Connector Layout:3 (DB, B)
Contact Type:Signal
Flange Feature:Housing/Shell (4-40)
Termination:Solder
Shell Material, Finish:Steel, Tin Plated
Contact Finish:Gold
Contact Finish Thickness:Flash
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Current Rating (Amps):6A
Backset Spacing:0.318" (8.08mm)
Features:Board Lock, Ground Strap, Grounding Indents
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 2227
Shipped from
HK warehouse
Expected Shipping Date
Jan 04 - Jan 08 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $5.75 $5.75
10 $5.52 $55.17
25 $5.06 $126.42
65 $4.83 $313.75
130 $4.60 $597.62
260 $4.02 $1 045.85
520 $3.91 $2 031.93
1040 $3.33 $3 466.24
2535 $3.10 $7 866.28

Current price of 5747842-3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products
DD104M20Y0S/AA

DD104M20Y0S/AA

CONN D-SUB HD PLUG 104P SLDR CUP

RD50S1S50V50/AA

RD50S1S50V50/AA

CONN D-SUB RCPT 50POS CRIMP

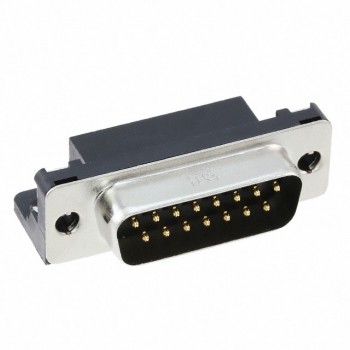

RDAD-15PE1/M2.6(55)
