580-M25-203L001

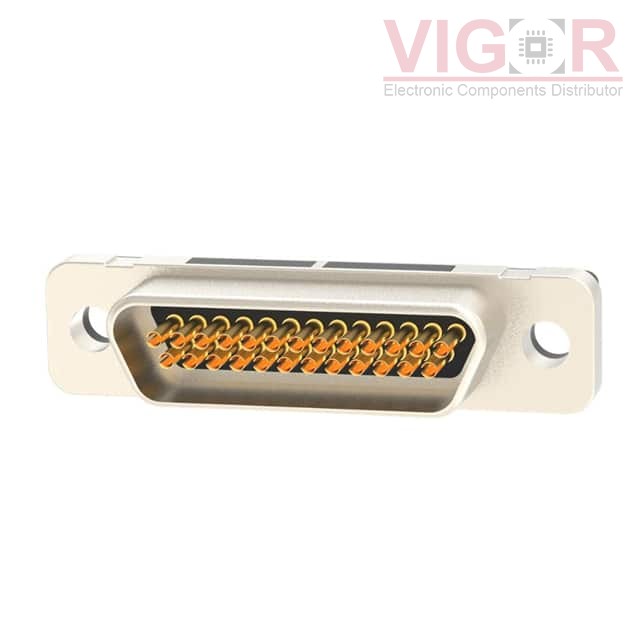

Product image
Product thumb
Part No :

580-M25-203L001

Manufacturer
NorComp
VIGOR # :

3324622

Description
CONN MICRO-D FEMALE 25P SC 15U"
Catalog
D-Sub Connectors
DataSheet
580-M25-203L001 PDF
Country of origin
-
Date code
-
ads
580-M25-203L001 Specifications
Type Description
Series:580
Package:Tray
Part Status:Active
Connector Style:D-Type, Micro-D
Connector Type:Receptacle, Female Sockets
Number of Positions:25
Number of Rows:2
Mounting Type:Panel Mount
Shell Size, Connector Layout:0.050 Pitch x 0.043 Row to Row
Contact Type:Signal
Flange Feature:Housing/Shell (Unthreaded)
Termination:Solder Cup
Shell Material, Finish:Zinc Alloy, Nickel Plated
Contact Finish:Gold
Contact Finish Thickness:15.0µin (0.38µm)
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Current Rating (Amps):2A
Backset Spacing:-
Features:Shielded
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 70
Shipped from
HK warehouse
Expected Shipping Date
Jan 20 - Jan 24 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $36.55 $36.55

Current price of 580-M25-203L001 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products
DD15M32S60T2Z

DD15M32S60T2Z

CONN D-SUB HD PLUG 15P VERT SLDR

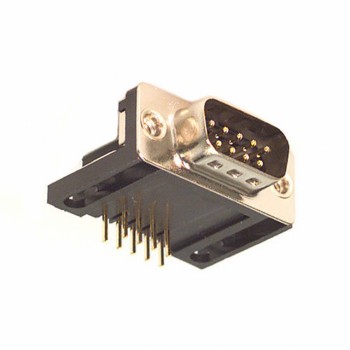

183-009-113R171

183-009-113R171

CONN D-SUB PLUG 9POS R/A SLDR

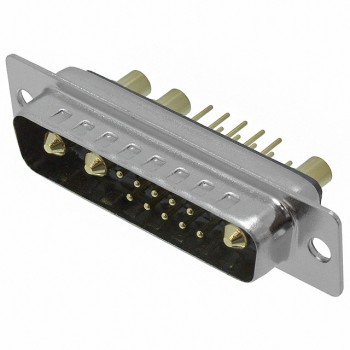

681S13W3103L001
