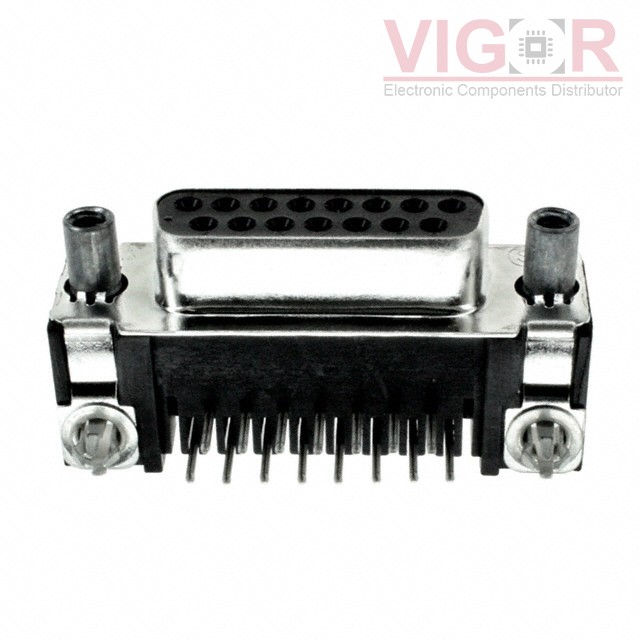

5747845-6

Part No :: 5747845-6

Manufacturer: TE Connectivity AMP Connectors

Description: CONN D-SUB RCPT 15POS R/A SLDR

Catalog: D-Sub Connectors

DataSheet: 5747845-6 PDF

Availability: 198 pieces

Current price of 5747845-6 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

5747845-6 Specifications

Type	Description
Series:	AMPLIMITE HD-20
Package:	Tray
Part Status:	Active
Connector Style:	D-Sub
Connector Type:	Receptacle, Female Sockets
Number of Positions:	15
Number of Rows:	2
Mounting Type:	Through Hole, Right Angle
Shell Size, Connector Layout:	2 (DA, A)
Contact Type:	Signal
Flange Feature:	Mating Side, Female Screwlock (4-40)
Termination:	Solder
Shell Material, Finish:	Steel, Tin Plated
Contact Finish:	Gold
Contact Finish Thickness:	30.0µin (0.76µm)
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Current Rating (Amps):	6A
Backset Spacing:	0.318" (8.08mm)
Features:	Board Lock, Ground Strap

Please confirm the specifications of the products when ordering.
