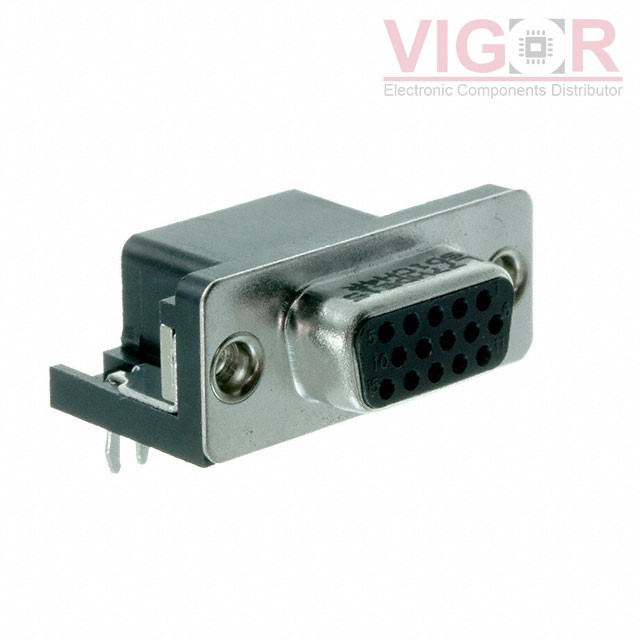

L77HDE15SD1CH4R

Part No :: L77HDE15SD1CH4R

Manufacturer: Storage & Server IO (Amphenol ICC)

Description: CONN D-SUB HD RCPT 15P R/A SLDR

Catalog: D-Sub Connectors

DataSheet: L77HDE15SD1CH4R PDF

Availability: 219 pieces

Current price of L77HDE15SD1CH4R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

L77HDE15SD1CH4R Specifications

Type	Description
Series:	HD
Package:	Tray
Part Status:	Active
Connector Style:	D-Sub, High Density
Connector Type:	Receptacle, Female Sockets
Number of Positions:	15
Number of Rows:	3
Mounting Type:	Through Hole, Right Angle
Shell Size, Connector Layout:	1 (DE, E) High Density
Contact Type:	Signal
Flange Feature:	Board Side (4-40)
Termination:	Solder
Shell Material, Finish:	Steel, Tin Plated
Contact Finish:	Gold
Contact Finish Thickness:	Flash
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Current Rating (Amps):	3A
Backset Spacing:	0.350" (8.89mm)
Features:	Board Lock
