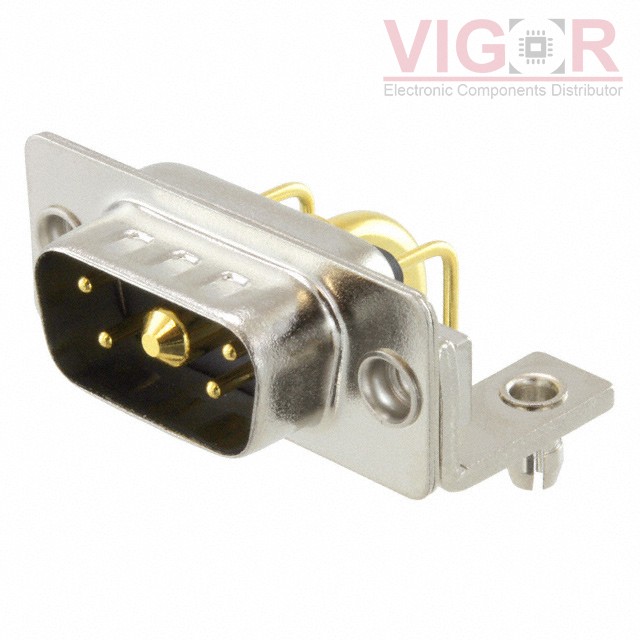

684M5W1103L461

Part No :: 684M5W1103L461

Manufacturer: NorComp

Description: CONN D-SUB PLUG 5POS R/A SLDR

Catalog: D-Sub Connectors

DataSheet: 684M5W1103L461 PDF

Availability: 0 pieces

Current price of 684M5W1103L461 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

684M5W1103L461 Specifications

Type	Description
Series:	Power-D 684M
Package:	Tray
Part Status:	Active
Connector Style:	D-Sub, Combo
Connector Type:	Plug, Male Pins
Number of Positions:	5 (4 + 1 Power)
Number of Rows:	2
Mounting Type:	Board Edge, Through Hole, Right Angle
Shell Size, Connector Layout:	1 (DE, E) - 5W1
Contact Type:	Signal and Power
Flange Feature:	Housing/Shell (4-40)
Termination:	Solder
Shell Material, Finish:	Steel, Nickel Plated
Contact Finish:	Gold
Contact Finish Thickness:	Flash
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Current Rating (Amps):	5A, 40A
Backset Spacing:	0.401" (10.20mm)
Features:	Board Lock, Grounding Indents, Mounting Brackets
