DD26S20WTX

Part No :: DD26S20WTX

Manufacturer: PEI-Genesis

VIGOR # :: 3325909

Description: CONN D-SUB HD RCPT 26P SLDR CUP

Catalog: D-Sub Connectors

DataSheet: DD26S20WTX PDF

Country of origin: -

Date code: -

DD26S20WTX Specifications

Type	Description
Series:	DD
Package:	Box
Part Status:	Active
Connector Style:	D-Sub, High Density
Connector Type:	Receptacle, Female Sockets
Number of Positions:	26
Number of Rows:	3
Mounting Type:	Free Hanging (In-Line)
Shell Size, Connector Layout:	2 (DA, A) High Density
Contact Type:	Signal
Flange Feature:	Mating Side, Female Screwlock (4-40)
Termination:	Solder Cup
Shell Material, Finish:	Steel, Tin Plated
Contact Finish:	Gold
Contact Finish Thickness:	Flash
Ingress Protection:	IP65/IP67 - Dust Tight, Water Resistant, Waterproof
Material Flammability Rating:	UL94 V-0
Current Rating (Amps):	5A
Backset Spacing:	-
Features:	Backshell, Cable Clamp, Mounting Hardware

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Jan 03 - Jan 07 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$61.05~~	~~$61.05~~

Current price of DD26S20WTX is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

L77DD50S

CONN D-SUB RCPT 50POS SLDR CUP

1-745495-8

CONN D-SUB RCPT 25POS IDC

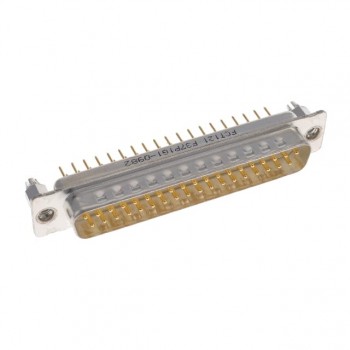

1731090142
