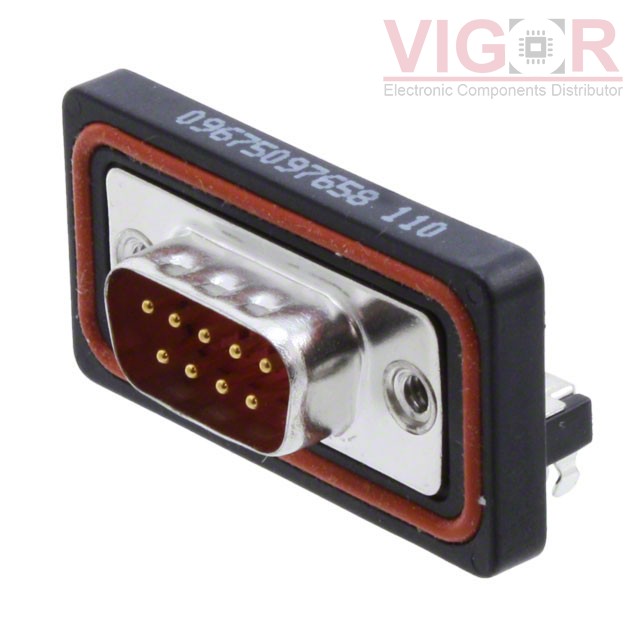

09675097658

Part No :: 09675097658

Manufacturer: HARTING

VIGOR # :: 3332778

Description: CONN D-SUB PLUG 9POS R/A SLDR

Catalog: D-Sub Connectors

DataSheet: 09675097658 PDF

Country of origin: -

Date code: -

09675097658 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Connector Style:	D-Sub
Connector Type:	Plug, Male Pins
Number of Positions:	9
Number of Rows:	2
Mounting Type:	Panel Mount, Through Hole, Right Angle
Shell Size, Connector Layout:	1 (DE, E)
Contact Type:	Signal
Flange Feature:	Housing/Shell (4-40)
Termination:	Solder
Shell Material, Finish:	Brass, Tin Plated
Contact Finish:	Gold or Gold-Palladium
Contact Finish Thickness:	30.0µin (0.76µm)
Ingress Protection:	IP67 - Dust Tight, Waterproof
Material Flammability Rating:	UL94 V-0
Current Rating (Amps):	5A
Backset Spacing:	0.228" (5.80mm)
Features:	Board Lock, Grounding Indents, Mounting Brackets

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 441

Shipped from

HK warehouse

Expected Shipping Date

Jan 15 - Jan 19 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$23.90~~	~~$23.90~~
10	~~$21.57~~	~~$215.75~~
25	~~$20.67~~	~~$516.77~~
50	~~$19.38~~	~~$968.94~~
100	~~$18.73~~	~~$1 873.28~~
250	~~$17.70~~	~~$4 424.83~~
500	~~$17.18~~	~~$8 591.27~~

Current price of 09675097658 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

DD26S100T0/AA

CONN D-SUB HD RCPT 26POS CRIMP

DE-9S-1A7N-A197

CONN D-SUB RCPT 9POS R/A SLDR

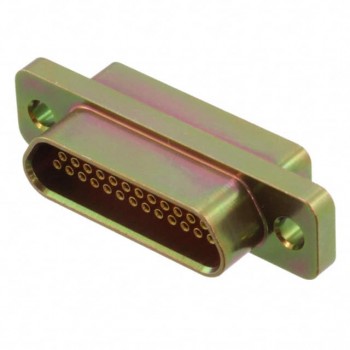

M83513/02-DC
