09683635813

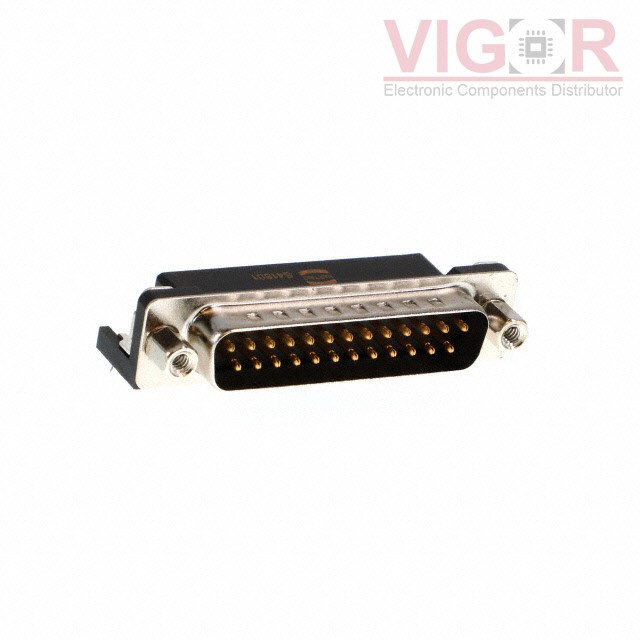

Image is for reference,
please contact us to get the real picture

Part No :: 09683635813

Manufacturer: HARTING

Description: CONN D-SUB PLUG 25POS R/A SLDR

Catalog: D-Sub Connectors

DataSheet: 09683635813 PDF

Availability: 29 pieces

Unit Price: ~~$6.19000~~

Current price of 09683635813 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

09683635813 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Connector Style:	D-Sub
Connector Type:	Plug, Male Pins
Number of Positions:	25
Number of Rows:	2
Mounting Type:	Through Hole, Right Angle
Shell Size, Connector Layout:	3 (DB, B)
Contact Type:	Signal
Flange Feature:	Mating Side, Female Screwlock (4-40)
Termination:	Solder
Shell Material, Finish:	Steel
Contact Finish:	Gold or Gold-Palladium
Contact Finish Thickness:	30.0µin (0.76µm)
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Current Rating (Amps):	6.5A
Backset Spacing:	0.318" (8.08mm)
Features:	Board Lock, Grounding Indents

Please confirm the specifications of the products when ordering.
