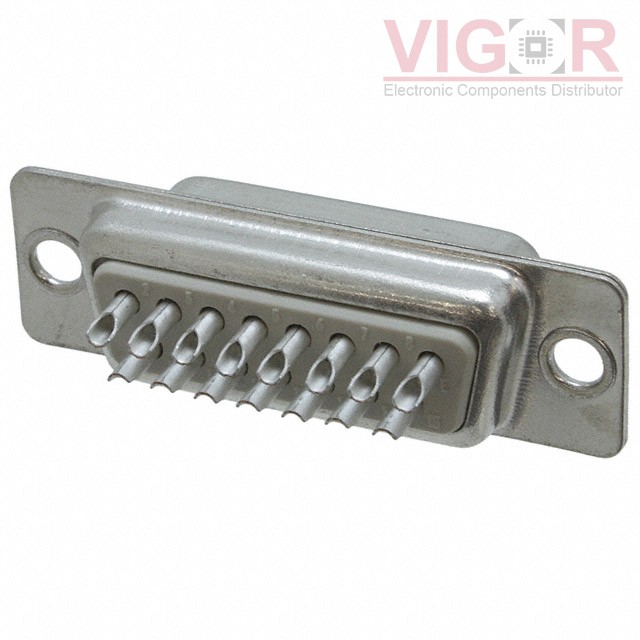

3-1393483-9

Part No :: 3-1393483-9

Manufacturer: TE Connectivity AMP Connectors

VIGOR # :: 4717107

Description: CONN D-SUB RCPT 15POS SLDR CUP

Catalog: D-Sub Connectors

DataSheet: 3-1393483-9 PDF

Country of origin: -

Date code: -

3-1393483-9 Specifications

Type	Description
Series:	AMPLIMITE HD-20
Package:	Tray
Part Status:	Obsolete
Connector Style:	D-Sub
Connector Type:	Receptacle, Female Sockets
Number of Positions:	15
Number of Rows:	2
Mounting Type:	Free Hanging (In-Line)
Shell Size, Connector Layout:	2 (DA, A)
Contact Type:	Signal
Flange Feature:	Housing/Shell (Unthreaded)
Termination:	Solder Cup
Shell Material, Finish:	Steel, Tin Plated
Contact Finish:	Gold
Contact Finish Thickness:	-
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Current Rating (Amps):	3A
Backset Spacing:	-
Features:	-
