2-2328724-5

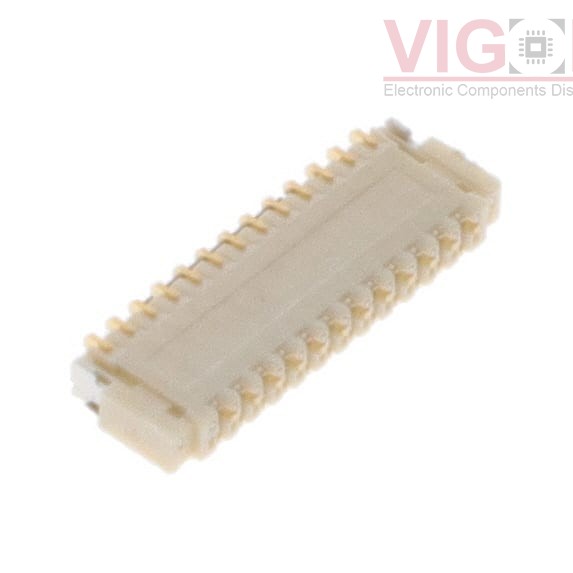

Image is for reference,
please contact us to get the real picture

Part No :: 2-2328724-5

Manufacturer: TE Connectivity AMP Connectors

Description: 0.3MM PITCH FRONT FLIP FPC, 25PO

Catalog: FFC, FPC (Flat Flexible) Connectors

DataSheet: 2-2328724-5 PDF

Availability: 31574 pieces

Unit Price: ~~$0.28000~~

Current price of 2-2328724-5 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

2-2328724-5 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Flat Flex Type:	FPC
Mounting Type:	Surface Mount, Right Angle
Connector/Contact Type:	Contacts, Bottom
Number of Positions:	25
Pitch:	0.012" (0.30mm)
Termination:	Solder
FFC, FCB Thickness:	0.20mm
Height Above Board:	0.039" (1.00mm)
Locking Feature:	Flip Lock
Cable End Type:	Tapered
Contact Material:	Copper Alloy
Contact Finish:	Gold
Housing Material:	Thermoplastic
Actuator Material:	Thermoplastic
Features:	-
Voltage Rating:	30V
Operating Temperature:	-40°C ~ 85°C
Material Flammability Rating:	UL94 V-0
