5019121590

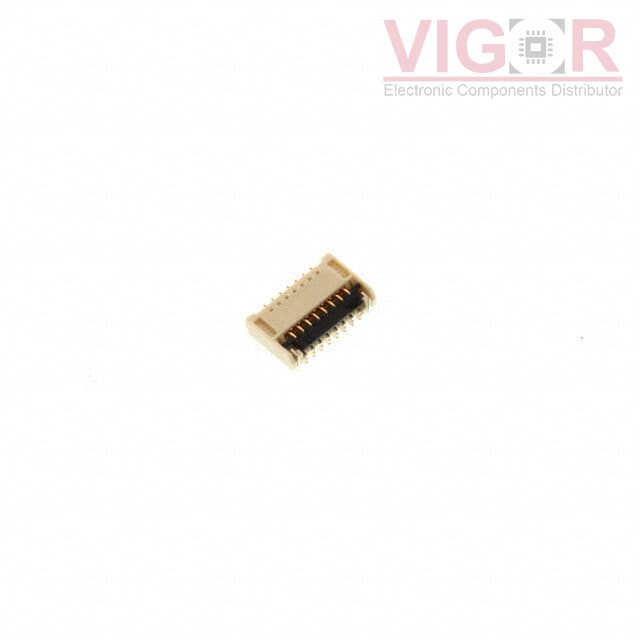

Image is for reference,
please contact us to get the real picture

Part No :: 5019121590

Manufacturer: Woodhead - Molex

Description: CONN FPC BOTTOM 15POS 0.30MM R/A

Catalog: FFC, FPC (Flat Flexible) Connectors

DataSheet: 5019121590 PDF

Availability: 7434 pieces

Unit Price: ~~$0.89000~~

Current price of 5019121590 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

5019121590 Specifications

Type	Description
Series:	Easy-On 501912
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Flat Flex Type:	FPC
Mounting Type:	Surface Mount, Right Angle
Connector/Contact Type:	Contacts, Bottom
Number of Positions:	15
Pitch:	0.012" (0.30mm)
Termination:	Solder
FFC, FCB Thickness:	0.20mm
Height Above Board:	-
Locking Feature:	Flip Lock
Cable End Type:	Tapered
Contact Material:	Copper Alloy
Contact Finish:	Gold
Housing Material:	Polymer, Glass Filled
Actuator Material:	Polymer, Glass Filled
Features:	Solder Retention
Voltage Rating:	50V
Operating Temperature:	-20°C ~ 85°C
Material Flammability Rating:	UL94 V-0
